W3DG7267V-D2 - SDRAM UNBUFFERED

White Electronic Designs

📥 Download Datasheet

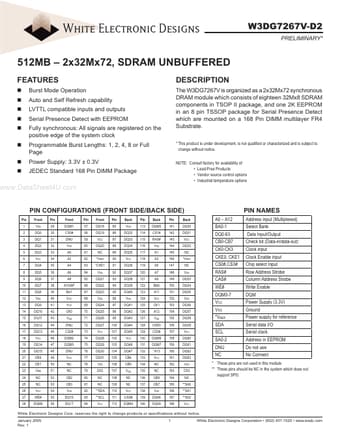

W3DG7267V-D2 Datasheet Preview — Preview of W3DG7267V-D2 PDF

Datasheet Details

Part number	W3DG7267V-D2
Manufacturer	White Electronic Designs
File Size	191.36 KB
Description	SDRAM UNBUFFERED
Datasheet	W3DG7267V-D2_WhiteElectronicDesigns.pdf

W3DG7267V-D2 Product details

Description

The W3DG7267V is organized as a 2x32Mx72 synchronous DRAM module which consists of eighteen 32Mx8 SDRAM components in TSOP II package, and one 2K EEPROM in an 8 pin TSSOP package for Serial Presence Detect which are mounted on a 168 Pin DIMM multilayer FR4 Substrate. This product is under development, is not qualiﬁed or characterized and is subject to change without notice. Lead-Free Products Vendor source control options

Features

Burst Mode Operation Auto and Self Refresh capability LVTTL compatible inputs and outputs Serial Presence Detect with EEPROM Fully synchronous: All signals are registered on the positive edge of the system clock Programmable Burst Lengths: 1, 2, 4, 8 or Full Page Power Supply: 3.3V ± 0.3V JEDEC Standard 168 Pin DIMM Package W3DG7267V-D2.
