W3DG7232V-D1 - SDRAM UNBUFFERED

White Electronic Designs

📥 Download Datasheet

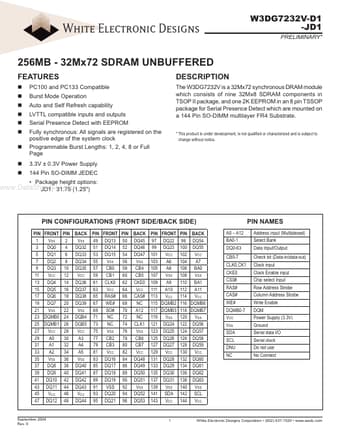

W3DG7232V-D1 Datasheet Preview — Preview of W3DG7232V-D1 PDF

Datasheet Details

Part number	W3DG7232V-D1
Manufacturer	White Electronic Designs
File Size	255.85 KB
Description	SDRAM UNBUFFERED
Datasheet	W3DG7232V-D1_WhiteElectronicDesigns.pdf

W3DG7232V-D1 Product details

Description

The W3DG7232V is a 32Mx72 synchronous DRAM module which consists of nine 32Mx8 SDRAM components in TSOP II package, and one 2K EEPROM in an 8 pin TSSOP package for Serial Presence Detect which are mounted on a 144 Pin SO-DIMM multilayer FR4 Substrate. This product is under development, is not qualiﬁed or characterized and is subject to change without notice.

Features

PC100 and PC133 Compatible Burst Mode Operation Auto and Self Refresh capability LVTTL compatible inputs and outputs Serial Presence Detect with EEPROM Fully synchronous: All signals are registered on the positive edge of the system clock Programmable Burst Lengths: 1, 2, 4, 8 or Full Page 3.3V ± 0.3V Power Supply 144 Pin SO-DIMM JEDEC.
Package height options: W3DG7232V-D1 -JD1.
