W3DG72128V-D2 - SDRAM UNBUFFERED

White Electronic Designs

📥 Download Datasheet

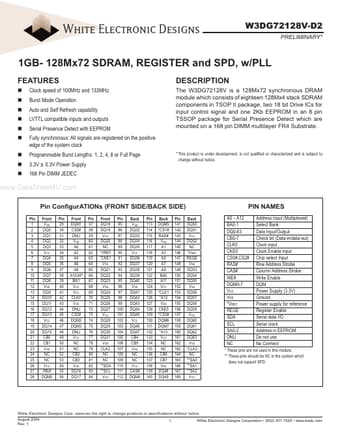

W3DG72128V-D2 Datasheet Preview — Preview of W3DG72128V-D2 PDF

Datasheet Details

Part number	W3DG72128V-D2
Manufacturer	White Electronic Designs
File Size	166.27 KB
Description	SDRAM UNBUFFERED
Datasheet	W3DG72128V-D2_WhiteElectronicDesigns.pdf

W3DG72128V-D2 Product details

Description

The W3DG72128V is a 128Mx72 synchronous DRAM module which consists of eighteen 128Mx4 stack SDRAM components in TSOP II package, two 18 bit Drive ICs for input control signal and one 2Kb EEPROM in an 8 pin TSSOP package for Serial Presence Detect which are mounted on a 168 pin DIMM multilayer FR4 Substrate.

Features

Clock speed of 100MHz and 133MHz Burst Mode Operation Auto and Self Refresh capability LVTTL compatible inputs and outputs Serial Presence Detect with EEPROM Fully synchronous: All signals are registered on the positive edge of the system clock Programmable Burst Lengths: 1, 2, 4, 8 or Full Page 3.3V ± 0.3V Power Supply 168 Pin DIMM JEDEC.
This product is under development, is not qualiﬁed or characterized and is subject to change without notice.
