Name: FLF10
SKU: FLF10-641457

The FLF10 by White Electronic Designs Corporation is a High Density Flash Memory Card. Below is the official datasheet preview.

📥 Download Datasheet

FLF10 High Density Flash Memory Card by White Electronic Designs Corporation - Datasheet Preview — Official preview page of the **FLF10** High Density Flash Memory Card datasheet (White Electronic Designs Corporation).

Datasheet Details

Part number	FLF10
Manufacturer	White Electronic Designs Corporation
File Size	217.66 KB
Description	High Density Flash Memory Card
Datasheet	FLF10_WhiteElectronicDesignsCorporation.pdf

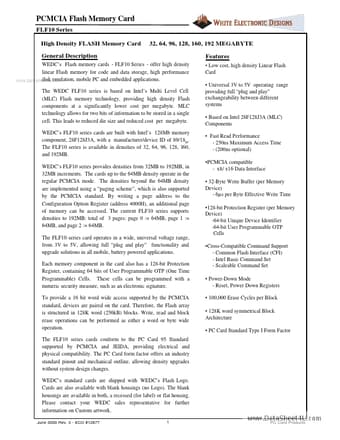

Additional preview pages of the FLF10 datasheet.

FLF10 Product details

Description

WEDC’s Flash memory cards - FLF10 Series - offer high density linear Flash memory for code and data storage, high performance disk emulation, mobile PC and embedded applications.

Features

Low cost, high density Linear Flash Card.
Universal 3V to 5V operating range providing full “plug and play” exchangeability between different systems.
Based on Intel 28F128J3A (MLC) Components.
Fast Read Performance - 250ns Maximum Access Time - (200ns optional).
PCMCIA compatible - x8/ x16 Data Interface.
32-Byte Write Buffer (per Memory Device) - 6µs per Byte Effective Write Time.
128-bit Protection Register (per Memory Device) -64-.
