EDI8F32128C - 128KX32 STATIC RAM CMOS

EDI8F32128C Description

White Electronic Designs EDI8F32128C 128KX32 STATIC RAM CMOS, HIGH SPEED MODULE .
The EDI8F32128C is a high speed 4Mb Static RAM module organized as 128K words by 32 bits.

EDI8F32128C Applications

* where alternate modules can be interchanged. Access Times: 15, 20, and 25ns Individual Byte Selects Fully Static, No Clocks TTL Compatible I/O Single +5V (±10%) Supply Operation High Density Package with JEDEC Standard Pinouts 64 Pin ZIP, No. 85
* Height: 13.97 (0.550") 64 Lead SIMM, No. 33

📥 Download Datasheet

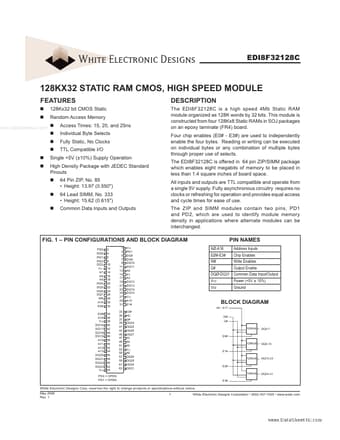

Preview of EDI8F32128C PDF
datasheet Preview Page 2 datasheet Preview Page 3
