R3047TC24K, Distributed Gate Thyristor

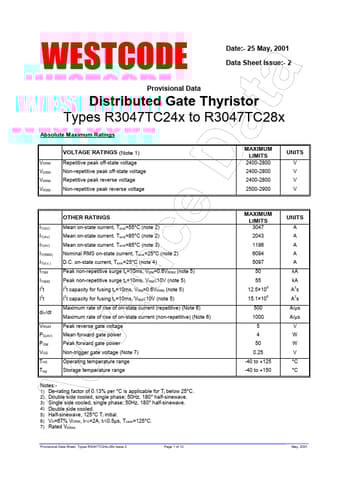

WESTCODE Date:- 25 May, 2001 Data Sheet Issue:- 2 Provisional Data Distributed Gate Thyristor Types R3047TC24x to R3047TC28x Absolute Maximum Ratings VDRM VDSM VRRM VRSM VOLTAGE RATINGS (Note 1) Repetitive peak off-state voltage Non-repetitive peak off-state voltage Repetitive peak reverse voltage Non-repetitive peak reverse voltage MAXIMUM LIMITS 2400-2800 2400-2800 2400-2800 2500-2900 UNITS V V V V IT(AV) IT(AV) IT(AV) IT(RMS) IT(d.c.) ITSM ITSM2 I2t I2t diT/dt VRGM PG(AV
