WT62P2 - Micro-controller

Weltrend Semiconductor

📥 Download Datasheet

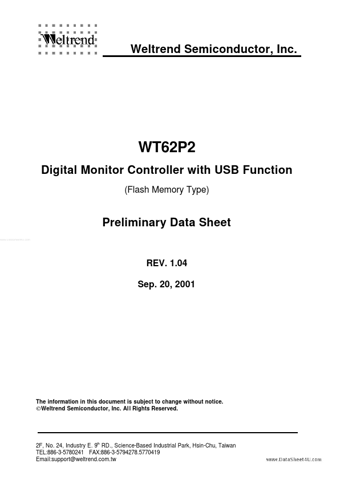

WT62P2 Datasheet Preview — Preview of WT62P2 PDF

Datasheet Details

Part number	WT62P2
Manufacturer	Weltrend Semiconductor
File Size	1.12 MB
Description	Micro-controller
Datasheet	WT62P2_WeltrendSemiconductor.pdf

WT62P2 Product details

Description

v1.04 USB Monitor Controller The WT62P2 is a microcontroller for digital controlled monitor with Universal Serial Bus (USB) interface.It contains an 8-bit CPU, 60K bytes Flash memory, 1024 bytes RAM, 256 bits bit-addressable RAM, 14 2 PWMs, parallel I/Os, SYNC signal processor, timer, DDC1/2B interface, master/slave I C interface, low speed USB device module, 6-bit A/D converter and watch-dog timer.

Features

8-bit 6502 compatible CPU with 6MHz operating frequency 60K bytes flash memory, 1024 bytes SRAM, 256 bits bit-addressable SRAM 12MHz crystal oscillator 14 channels 8-bit PWM outputs Sync signal processor with H+V separation, H/V frequency counter, H/V polarity detection/control and clamp pulse output Six free-running sync signal.
