B540 (B520 - B560) Surface Mount Schottky Barrier Rectifiers

B540 Description

B520 thru B560 Surface Mount Schottky Barrier Rectifiers .

B540 Applications

* REVERSE VOLTAGE 20 TO 60 VOLTS FORWARD CURRENT 5.0 AMPERE Mechanical Data:
* Case : Molded Plastic
* Polarity :Indicated by cathode band
* Weight : 0.007 Ounce ,0.21 grams SMC(DO-214AB) SMC Outline Dimension SMC Dim Unit:mm A B C D E G H J Min Max 5.59 6.60 2.75 0.15 7.75 0.10 0.76

📥 Download Datasheet

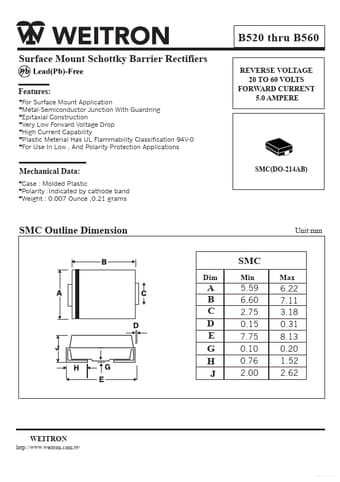

Preview of B540 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
B540
Manufacturer
Weitron
File Size
182.19 KB
Datasheet
B540_Weitron.pdf
Description
(B520 - B560) Surface Mount Schottky Barrier Rectifiers
