WT6801 - Monitor On-Screen Display

Weitron Technology

📥 Download Datasheet

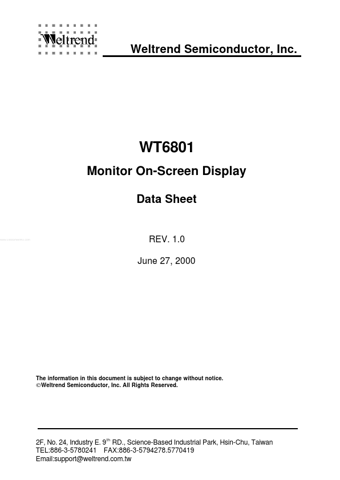

WT6801 Datasheet Preview — Preview of WT6801 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	WT6801
Manufacturer	Weitron Technology
File Size	90.24 KB
Description	Monitor On-Screen Display
Datasheet	WT6801_WeitronTechnology.pdf

WT6801 Product details

Description

The WT6801 is designed to display color symbols or characters onto monitor.

Features

Programmable horizontal resolutions up to 1530 dots per line.
Horizontal frequency up to 120KHz.
On-chip PLL up to 96MHz.
Fully programmable character array of 15 rows by 30 columns.
12x18 dot matrix per character.
256 characters and graphic symbols ROM including 16 multi-color fonts.
8 colors per display character.
7 colors per display character background.
4 programmable windows.
Double character height.
