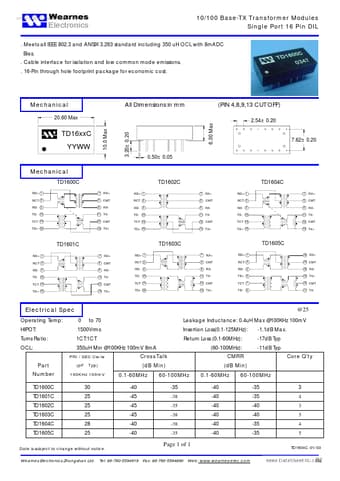

TD1603C, 10/100 Base-TX Transformer Modules

www.DataSheet4U.com 10/100 Base-TX Transformer Modules Single Port 16 Pin DIL .

Meets all IEEE 802.3 and ANSIX 3.263 standard including 350 uH OCL with 8mADC Bias.

Cable interface for isolation and low common mode emissions.

16-Pin through hole footprint package for economic cost.

Mechanical 20.60 Max All Dimensions in mm (PIN 4,8,9,13 CUT OFF) 2.54± 0.20 3.20± 0.20 TD16xxC YYWW Mechanical TD1600C RD+ 1 RCT 3 RD- 2 TD- 15 TCT 14 TD+ 16 7 5 6 10.0 Max 6.00 Max 7.62± 0.20 0.50± 0.05
