NCR100W-12M SCR

NCR100W-12M Description

NCR100W-12M SCR 27 June 2016 Product data sheet 1.General .
Planar passivated SCR with sensitive gate in a SOT223 surface mountable plastic package.

NCR100W-12M Features

* Sensitive gate
* Planar passivated for voltage ruggedness and reliability
* Direct triggering from low power drivers and logic ICs

NCR100W-12M Applications

* Ground Fault Circuit Interrupters (GFCI)
* General purpose switching and phase control
* Ignition circuits, CDI for 2- and 3-wheelers
* Motor control - e. g. small kitchen appliances 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditio

📥 Download Datasheet

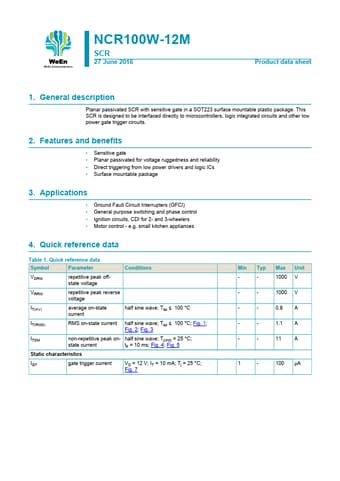

Preview of NCR100W-12M PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NCR100W-12M
Manufacturer
WeEn
File Size
232.34 KB
Datasheet
NCR100W-12M-WeEn.pdf
Description
SCR
