BYV8MX-650P - Ultrafast power diode

BYV8MX-650P Description

BYV8MX-650P Ultrafast power diode Rev.01 - 24 November 2023 Product data sheet 1.General .
Ultrafast power diode in a 2-lead TO220F plastic package h RoHS alogen-Free 2. Fast switching. Isolated pl.

BYV8MX-650P Features

* Fast switching
* Isolated plastic package
* Low leakage current
* Low reverse recovery current
* Low thermal resistance
* Reduces switching losses in associated MOSFET or IGBT
* Package meets UL94 V0 which guaranteed by Epoxy Mold Compound 3.

BYV8MX-650P Applications

* Active PFC in air conditioner
* High frequency switched-mode power supplies
* Power Factor Correction (PFC) 4. Quick reference data Table 1. Quick reference data Symbol Parameter Absolute maximum rating Conditions VRRM IF(AV) IFRM IFSM repetitive peak reverse voltage a

📥 Download Datasheet

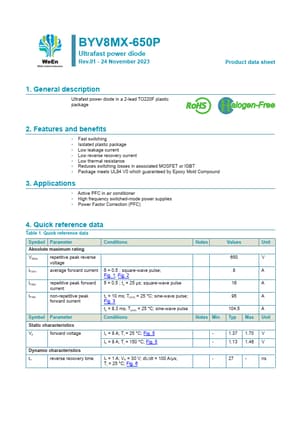

Preview of BYV8MX-650P PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BYV8MX-650P
Manufacturer
WeEn
File Size
415.99 KB
Datasheet
BYV8MX-650P-WeEn.pdf
Description
Ultrafast power diode
