BYC30M-650P - Hyperfast power diode

Description

Hyperfast power diode in a 2-lead TO220 plastic package.

2.

Features

  • Excellent avalanche energy robustness.
  • Low leakage current.
  • Low thermal resistance.
  • Low reverse recovery current.
  • Reduces switching losses in associated MOSFET or IGBT 3.

📥 Download Datasheet

Datasheet Details

Part number BYC30M-650P
Manufacturer WeEn
File Size 423.52 KB
Description Hyperfast power diode
Datasheet download datasheet BYC30M-650P Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BYC30 PNP SIlicon Transistor Central Semiconductor
BYC30-600P Hyperfast power diode NXP
BYC30-600P Ultrafast Rectifier INCHANGE
BYC30W-600P Hyperfast power diode NXP
BYC30WT-600P Hyperfast power diode NXP

Other Datasheets by WeEn

Part Number Description
BYC30MB-650P Hyperfast power diode
BYC30MW-650PST2 Hyperfast power diode
BYC30MW-650PT2 Hyperfast power diode
BYC30-1200P Hyperfast power diode
BYC30B-600P Hyperfast power diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

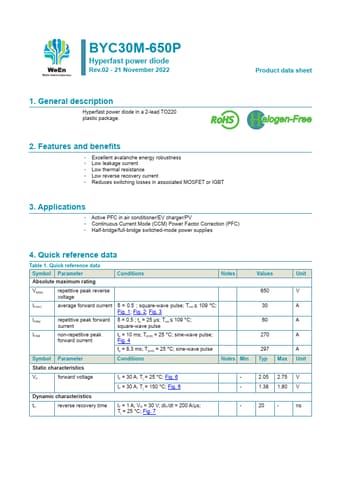

BYC30M-650P Hyperfast power diode Rev.02 - 21 November 2022 Product data sheet 1. General description Hyperfast power diode in a 2-lead TO220 plastic package. h RoHS alogen-Free 2. Features and benefits • Excellent avalanche energy robustness • Low leakage current • Low thermal resistance • Low reverse recovery current • Reduces switching losses in associated MOSFET or IGBT 3. Applications • Active PFC in air conditioner/EV charger/PV • Continuous Current Mode (CCM) Power Factor Correction (PFC) • Half-bridge/full-bridge switched-mode power supplies 4. Quick reference data Table 1. Quick reference data Symbol Parameter Absolute maximum rating Conditions Notes VRRM repetitive peak reverse voltage IF(AV) average forward current δ = 0.5 ; square-wave pulse; Tmb ≤ 109 °C; Fig.
