BTA316B-800E - 3Q Hi-Com Triac

WeEn

📥 Download Datasheet

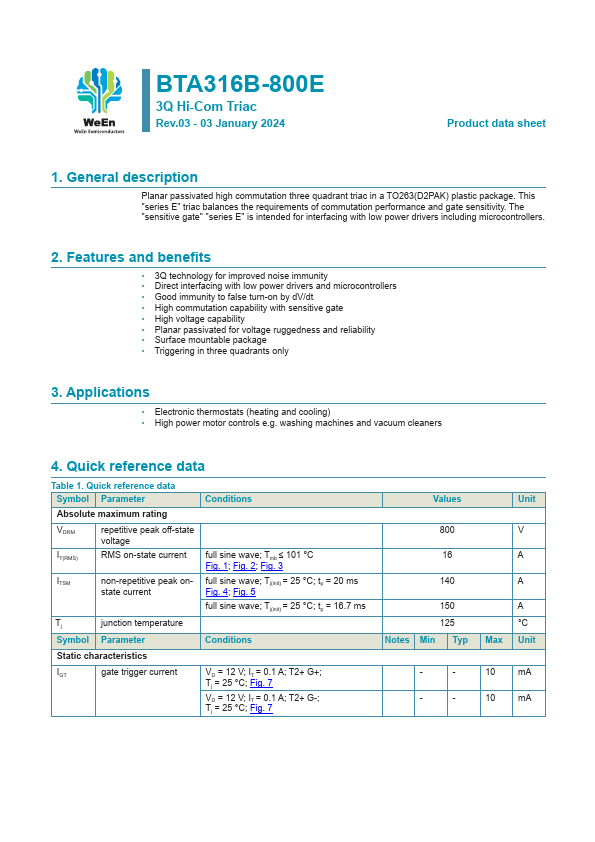

BTA316B-800E Datasheet Preview — Preview of BTA316B-800E PDF

datasheet Preview Page 2

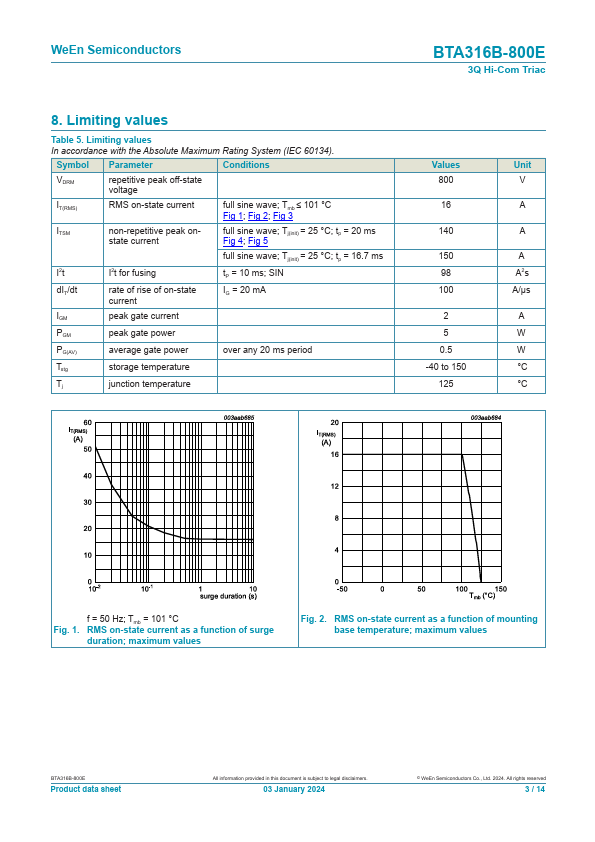

datasheet Preview Page 3

Datasheet Details

Part number	BTA316B-800E
Manufacturer	WeEn
File Size	529.35 KB
Description	3Q Hi-Com Triac
Datasheet	BTA316B-800E-WeEn.pdf

BTA316B-800E Product details

Description

Planar passivated high commutation three quadrant triac in a TO263(D2PAK) plastic package.

Features

3Q technology for improved noise immunity.
Direct interfacing with low power drivers and microcontrollers.
Good immunity to false turn-on by dV/dt.
High commutation capability with sensitive gate.
High voltage capability.
Planar passivated for voltage ruggedness and reliability.
Surface mountable package.
Triggering in three quadrants only 3.
