Datasheet Details
- Part number
- BTA206X-800CT
- Manufacturer
- WeEn
- File Size
- 581.66 KB
- Datasheet
- BTA206X-800CT-WeEn.pdf
- Description
- 3Q Hi-Com Triac
BTA206X-800CT Description

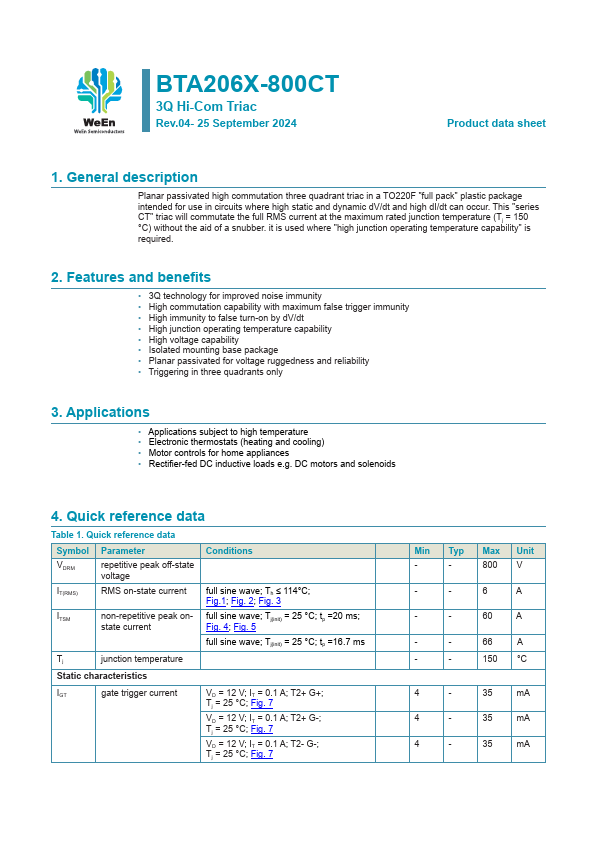

BTA206X-800CT 3Q Hi-Com Triac Rev.04- 25 September 2024 Product data sheet 1.General .
Planar passivated high commutation three quadrant triac in a TO220F "full pack" plastic package intended for use in circuits where high static and dyn.
BTA206X-800CT Features
* 3Q technology for improved noise immunity
* High commutation capability with maximum false trigger immunity
* High immunity to false turn-on by dV/dt
* High junction operating temperature capability
* High voltage capability
* Isolated mounting base
BTA206X-800CT Applications
* Applications subject to high temperature
* Electronic thermostats (heating and cooling)
* Motor controls for home appliances
* Rectifier-fed DC inductive loads e. g. DC motors and solenoids
4. Quick reference data
Table 1. Quick reference data
Symbol VDRM
IT(RMS)
