BT153-1200T - SCR

Name: BT153-1200T
SKU: BT153-1200T-1568224

WeEn

📥 Download Datasheet

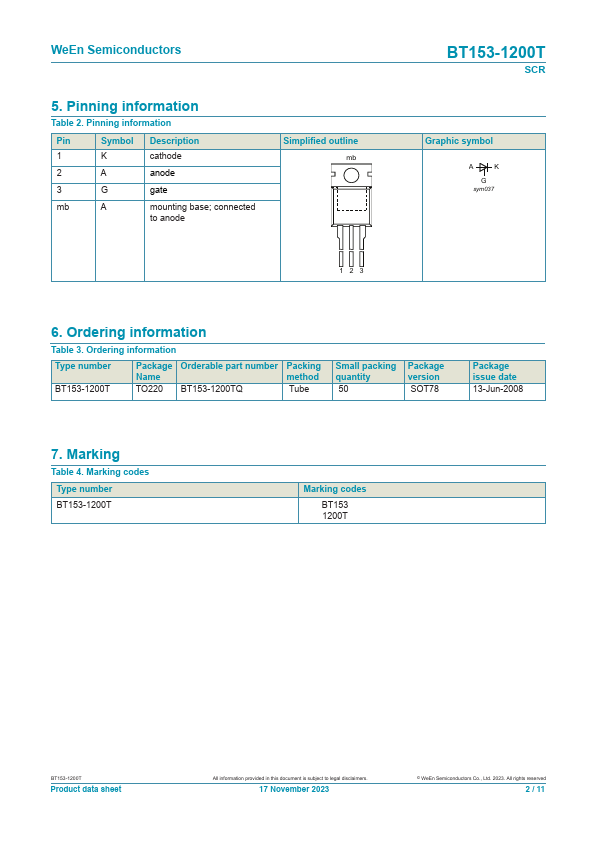

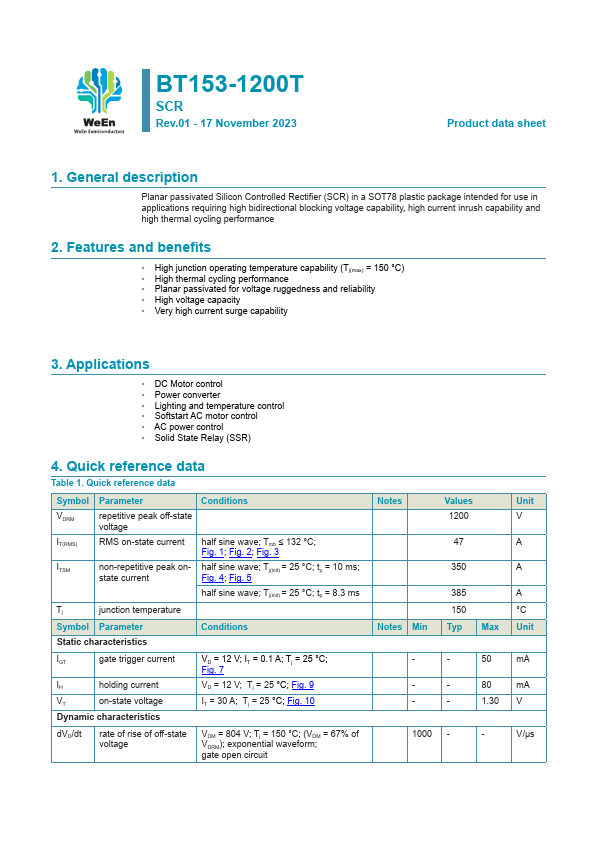

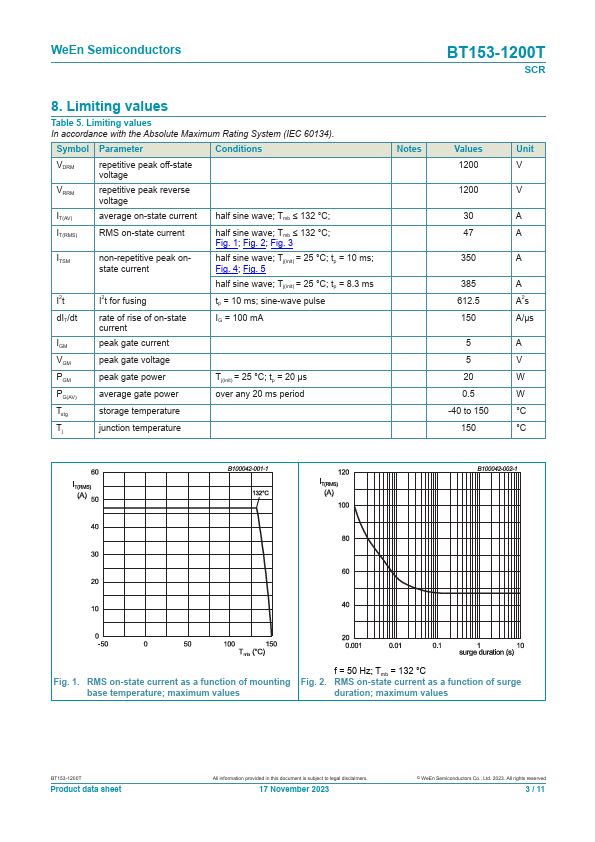

BT153-1200T Datasheet Preview — Preview of BT153-1200T PDF

Datasheet Details

Part number	BT153-1200T
Manufacturer	WeEn
File Size	462.17 KB
Description	SCR
Datasheet	BT153-1200T-WeEn.pdf

BT153-1200T Product details

Description

Planar passivated Silicon Controlled Rectifier (SCR) in a SOT78 plastic package intended for use in applications requiring high bidirectional blocking voltage capability, high current inrush capability and high thermal cycling performance 2.

Features

High junction operating temperature capability (Tj(max) = 150 °C).
High thermal cycling performance.
Planar passivated for voltage ruggedness and reliability.
High voltage capacity.
Very high current surge capability 3.
