BT137X-800E - 4Q Triac

Name: BT137X-800E
SKU: BT137X-800E-1423029

WeEn

📥 Download Datasheet

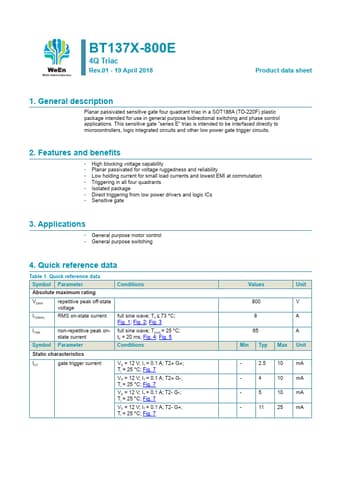

BT137X-800E Datasheet Preview — Preview of BT137X-800E PDF

Datasheet Details

Part number	BT137X-800E
Manufacturer	WeEn
File Size	477.26 KB
Description	4Q Triac
Datasheet	BT137X-800E-WeEn.pdf

BT137X-800E Product details

Description

Planar passivated sensitive gate four quadrant triac in a SOT186A (TO-220F) plastic package intended for use in general purpose bidirectional switching and phase control applications.

Features

High blocking voltage capability.
Planar passivated for voltage ruggedness and reliability.
Low holding current for small load currents and lowest EMI at commutation.
Triggering in all four quadrants.
Isolated package.
Direct triggering from low power drivers and logic ICs.
Sensitive gate 3.
