BT137S-600 - 4Q Triac

Name: BT137S-600
SKU: BT137S-600-1295390

WeEn

The BT137S-600 by WeEn is a 4Q Triac. Below is the official datasheet preview.

📥 Download Datasheet

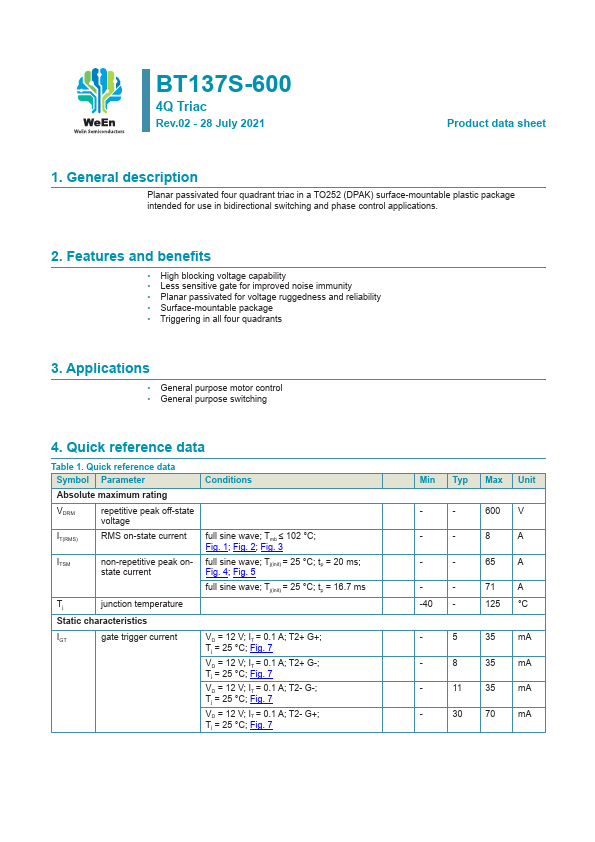

BT137S-600 4Q Triac by WeEn - Datasheet Preview — Official preview page of the **BT137S-600** 4Q Triac datasheet (WeEn).

Datasheet Details

Part number	BT137S-600
Manufacturer	WeEn
File Size	424.39 KB
Description	4Q Triac
Datasheet	BT137S-600-WeEn.pdf

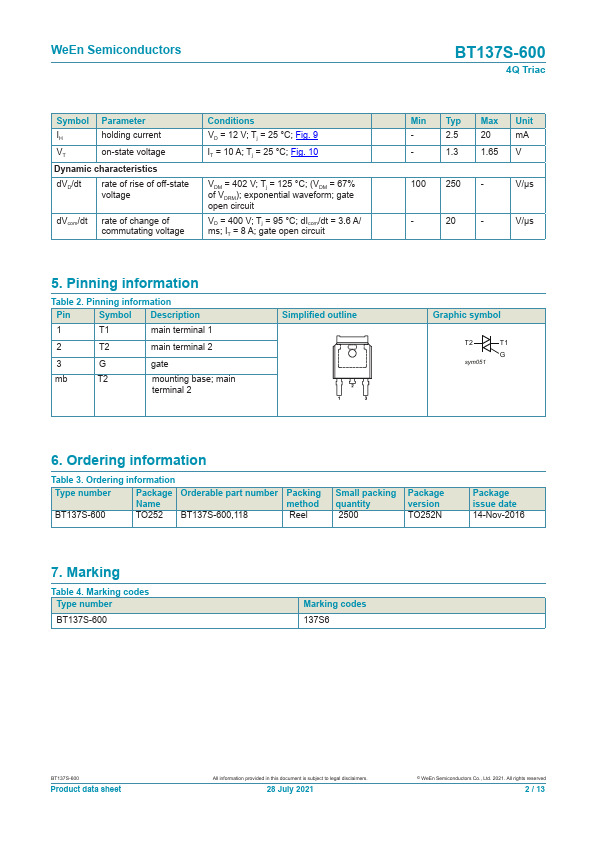

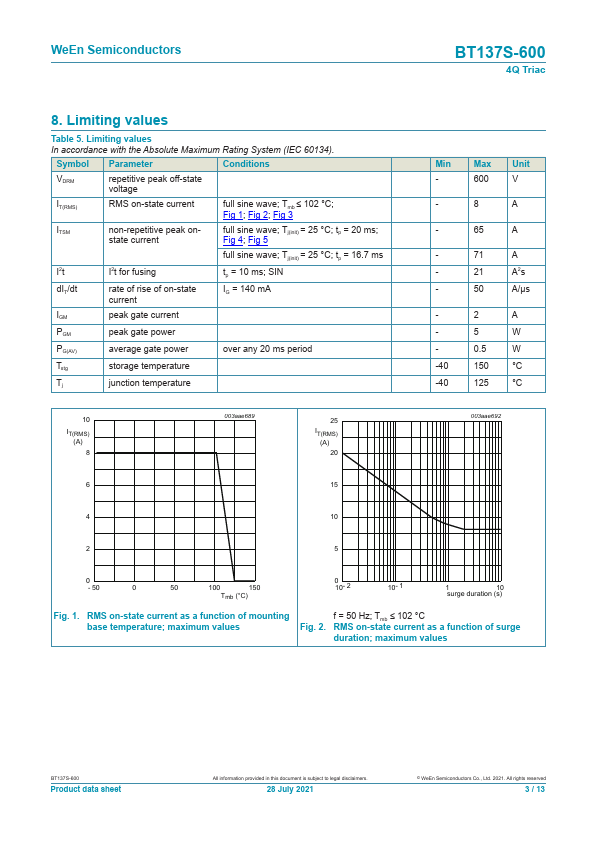

Additional preview pages of the BT137S-600 datasheet.

BT137S-600 Product details

Description

Planar passivated four quadrant triac in a TO252 (DPAK) surface-mountable plastic package intended for use in bidirectional switching and phase control applications.

Features

High blocking voltage capability.
Less sensitive gate for improved noise immunity.
Planar passivated for voltage ruggedness and reliability.
Surface-mountable package.
Triggering in all four quadrants 3.
