5.0SMDJ78A - 5000W Transient Voltage Suppressor

Download the 5.0SMDJ78A datasheet PDF. This datasheet also covers the 5.0SMDJ12A variant, as both devices belong to the same 5000w transient voltage suppressor family and are provided as variant models within a single manufacturer datasheet.

Description

5.0SMDJ series, 5000W transient voltage suppressor (TVS) in SMC package, designed to protect electronic circuits against damage induced by lightning surges or other transient voltage events.

2.

Features

  • Peak pulse power 5000W @ 10/1000μs waveform.
  • Excellent clamping capability.
  • Low incremental surge resistance.
  • Surface mount package for easy assembly and PCB space-saving.
  • IEC 61000-4-2 ESD 30kV (Air), 30kV (Contact).
  • EFT protection of data lines in accordance with IEC 61000-4-4.
  • Guaranteed high temperature for reflow soldering: 260°C/10sec.
  • Mold compound complies to UL94V-0 flammability classification.
  • Meets MSL l.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (5.0SMDJ12A-WeEn.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 5.0SMDJ78A
Manufacturer WeEn
File Size 500.25 KB
Description 5000W Transient Voltage Suppressor
Datasheet download datasheet 5.0SMDJ78A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
5.0SMDJ78A Surface Mount Transient Voltage Suppressors SOCAY
5.0SMDJ78A Transient Voltage Suppression Diodes Littelfuse
5.0SMDJ78A 16V - 100V Surface Mount Transient Voltage Suppressor Taiwan Semiconductor
5.0SMDJ78A Transient Voltage Suppressors Brightking
5.0SMDJ78A SURFACE MOUNT TVS DIODE RFE

Other Datasheets by WeEn

Part Number Description
5.0SMDJ78CA 5000W Transient Voltage Suppressor
5.0SMDJ70A 5000W Transient Voltage Suppressor
5.0SMDJ70CA 5000W Transient Voltage Suppressor
5.0SMDJ75A 5000W Transient Voltage Suppressor
5.0SMDJ75CA 5000W Transient Voltage Suppressor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

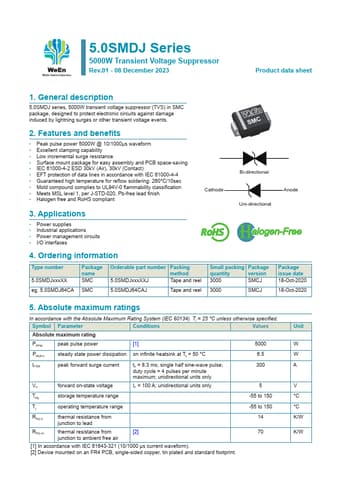

5.0SMDJ Series 5000W Transient Voltage Suppressor Rev.01 - 08 December 2023 Product data sheet 1. General description 5.0SMDJ series, 5000W transient voltage suppressor (TVS) in SMC package, designed to protect electronic circuits against damage induced by lightning surges or other transient voltage events. 2.
