WR08 Datasheet - Walsin Technology

WR08 General purpose chip resistors

The resistors are constructed in a high grade ceramic body (aluminum oxide). Internal metal electrodes are added at each end and connected by a resistive paste that is applied to the top surface of the substrate. The composition of the paste is adjusted to give the approximate resistance required an.

WR08 Datasheet (662.11 KB)

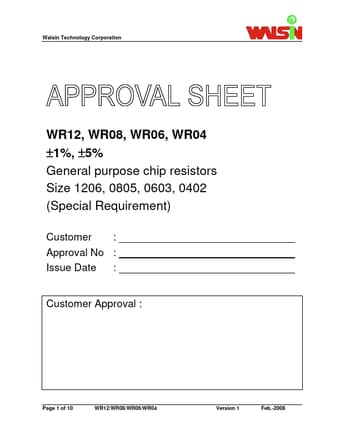

Preview of WR08 PDF
WR08 Datasheet Preview Page 2 WR08 Datasheet Preview Page 3

Datasheet Details

Part number:

WR08

Manufacturer:

Walsin Technology

File Size:

662.11 KB

Description:

General purpose chip resistors.
