IBS55 - 6000 VDC Input / Ouput Solation

Download the IBS55 datasheet PDF. This datasheet also covers the IBSxxx variant, as both devices belong to the same 6000 vdc input / ouput solation family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • highly isolated single and dual outputs short circuit protection industry standard packages high efficiency: 75% typical MTBF > 2,000,000 hours THE IB SERIES FROM WALL.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (IBSxxx_WallIndustries.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number IBS55
Manufacturer Wall Industries
File Size 126.21 KB
Description 6000 VDC Input / Ouput Solation
Datasheet download datasheet IBS55 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by Wall Industries

Part Number Description
IBS512 6000 VDC Input / Ouput Solation
IBS515 6000 VDC Input / Ouput Solation
IBS1512 6000 VDC Input / Ouput Solation
IBS1515 6000 VDC Input / Ouput Solation
IBS155 6000 VDC Input / Ouput Solation

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

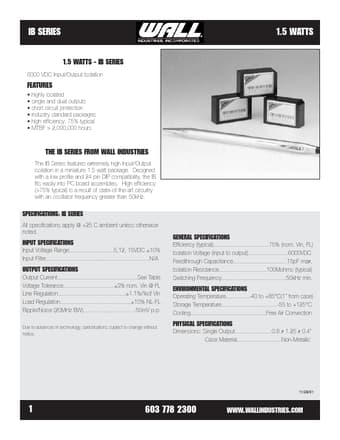

IB SERIES 1.5 WATTS - IB SERIES 6000 VDC Input/Output Isolation 1.5 WATTS FEATURES • • • • • • highly isolated single and dual outputs short circuit protection industry standard packages high efficiency: 75% typical MTBF > 2,000,000 hours THE IB SERIES FROM WALL INDUSTRIES The IB Series features extremely high Input/Output isolation in a miniature 1.5 watt package. Designed with a low profile and 24 pin DIP compatibility, the IB fits easily into PC board assemblies. High efficiency (>75% typical) is a result of state-of-the-art circuitry with an oscillator frequency greater than 50kHz. SPECIFICATIONS: IB SERIES All specifications apply @ +25 C ambient unless otherwise noted. GENERAL SPECIFICATIONS Efficiency (typical)....................................75% (nom.
