IBD1512-DIL - 6000 VDC Input / Ouput Solation

Download the IBD1512-DIL datasheet PDF. This datasheet also covers the IBS-248 variant, as both devices belong to the same 6000 vdc input / ouput solation family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • extremely high Input/Output isolation in a miniature 1.5 watt package. Designed with a low profile and 24 pin DIP compatibility, the IB fits easily into PC board assemblies. High efficiency (>75% typical) is a result of state-of-the-art circuitry with an oscillator frequency greater than 50kHz.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (IBS-248-xx.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number IBD1512-DIL
Manufacturer Wall Industries
File Size 83.83 KB
Description 6000 VDC Input / Ouput Solation
Datasheet download datasheet IBD1512-DIL Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by Wall Industries

Part Number Description
IBD1515-DIL 6000 VDC Input / Ouput Solation
IBD155-DIL 6000 VDC Input / Ouput Solation
IBD212-DIL 6000 VDC Input / Ouput Solation
IBD215-DIL 6000 VDC Input / Ouput Solation
IBD25-DIL 6000 VDC Input / Ouput Solation

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

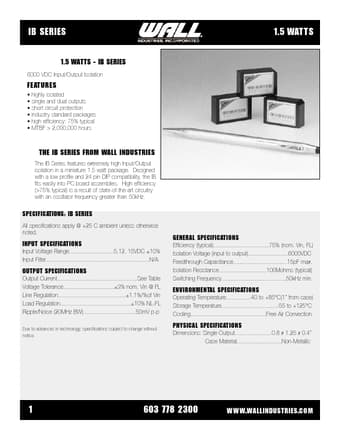

IB SERIES 1.5 WATTS 1.5 WATTS - IB SERIES 6000 VDC Input/Output Isolation F E AT U R E S • highly isolated • single and dual outputs • short circuit protection • industry standard packages • high efficiency: 75% typical • MTBF > 2,000,000 hours THE IB SERIES FROM WALL INDUSTRIES The IB Series features extremely high Input/Output isolation in a miniature 1.5 watt package. Designed with a low profile and 24 pin DIP compatibility, the IB fits easily into PC board assemblies. High efficiency (>75% typical) is a result of state-of-the-art circuitry with an oscillator frequency greater than 50kHz. SPECIFICATIONS: IB SERIES All specifications apply @ +25 C ambient unless otherwise noted. INPUT SPECIFICATIONS Input Voltage Range.............................5,12, 15VDC ±10% Input Filter........
