10BJ6.5CA, 10BJ5.0A - 1000WTransient VoltageSuppressor

Name: 10BJ6.5CA
SKU: 10BJ6.5CA-1589410

WPMTEK

📥 Download Datasheet

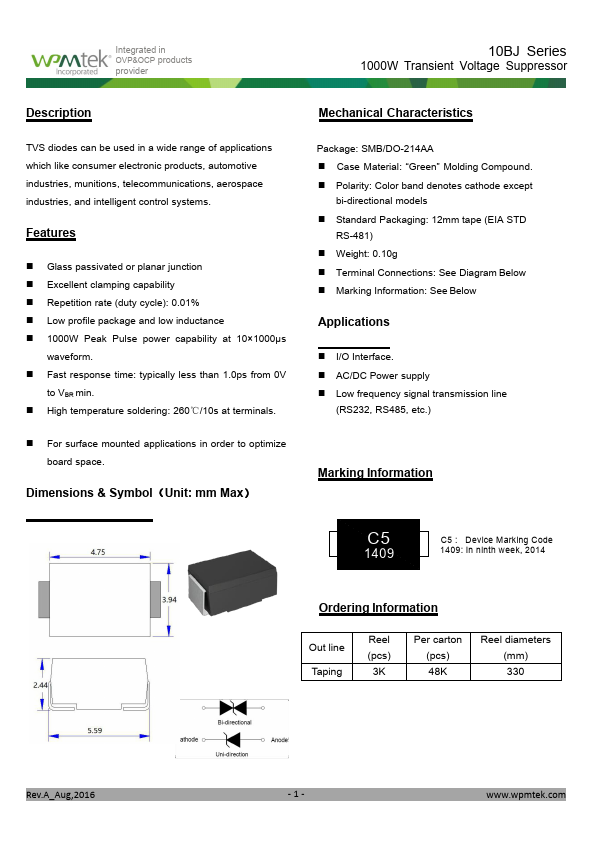

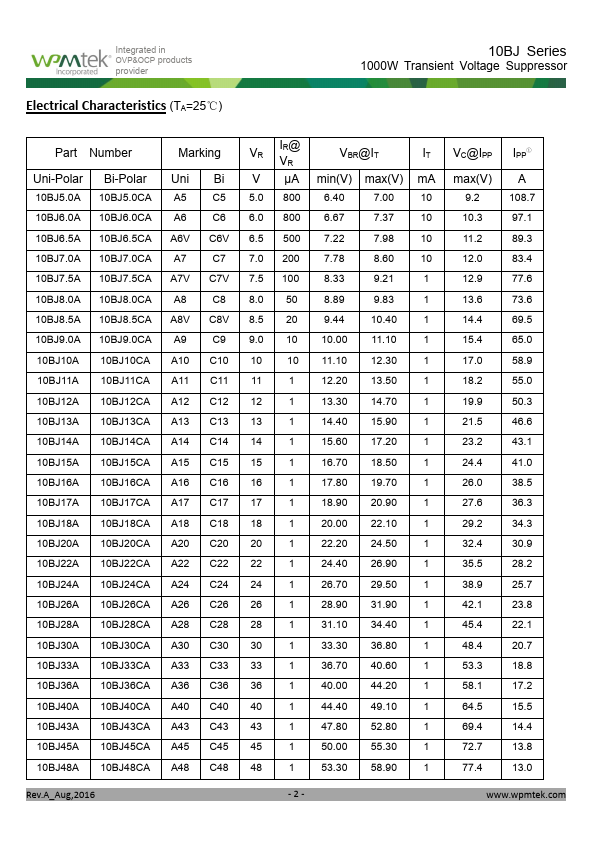

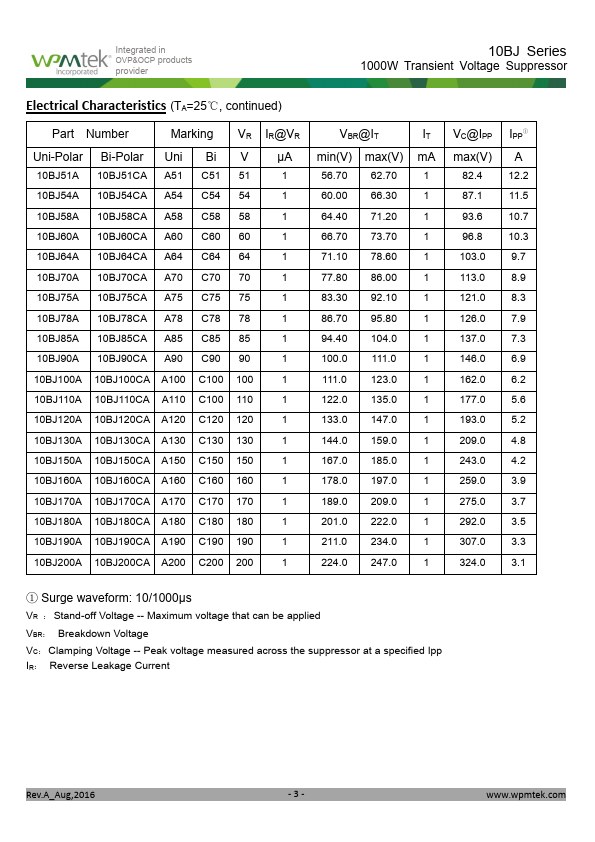

10BJ6.5CA Datasheet Preview — This datasheet PDF includes multiple part numbers: 10BJ6.5CA, 10BJ5.0A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	10BJ6.5CA, 10BJ5.0A
Manufacturer	WPMTEK
File Size	326.78 KB
Description	1000WTransient VoltageSuppressor
Datasheet	10BJ5.0A-WPMTEK.pdf
Note	This datasheet PDF includes multiple part numbers: 10BJ6.5CA, 10BJ5.0A. Please refer to the document for exact specifications by model.

10BJ6.5CA Product details

Description

TVS diodes can be used in a wide range of applications which like consumer electronic products, automotive industries, munitions, telecommunications, aerospace industries, and intelligent control systems.

Features

Glass passivated or planar junction.
Excellent clamping capability.
Repetition rate (duty cycle): 0.01%.
Low profile package and low inductance.
1000W Peak Pulse power capability at 10×1000μs waveform.
Fast response time: typically less than 1.0ps from 0V to VBR min.
High temperature soldering: 260℃/10s at terminals.
For surface mounted.
