10BJ26CA

The 10BJ26CA is 1000WTransient VoltageSuppressor designed by WPMTEK.

Product Overview

WPMTEK

Datasheet Details

Part number	10BJ26CA, 10BJ5.0A
Manufacturer	WPMTEK
File Size	326.78 KB
Description	1000WTransient VoltageSuppressor
Datasheet	10BJ5.0A-WPMTEK.pdf
Note	This datasheet PDF includes multiple part numbers: 10BJ26CA, 10BJ5.0A. Please refer to the document for exact specifications by model.

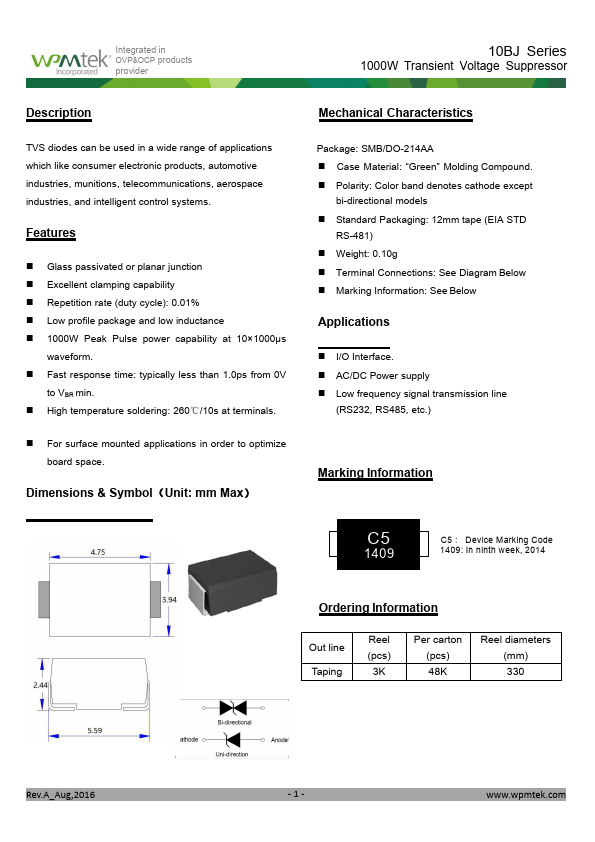

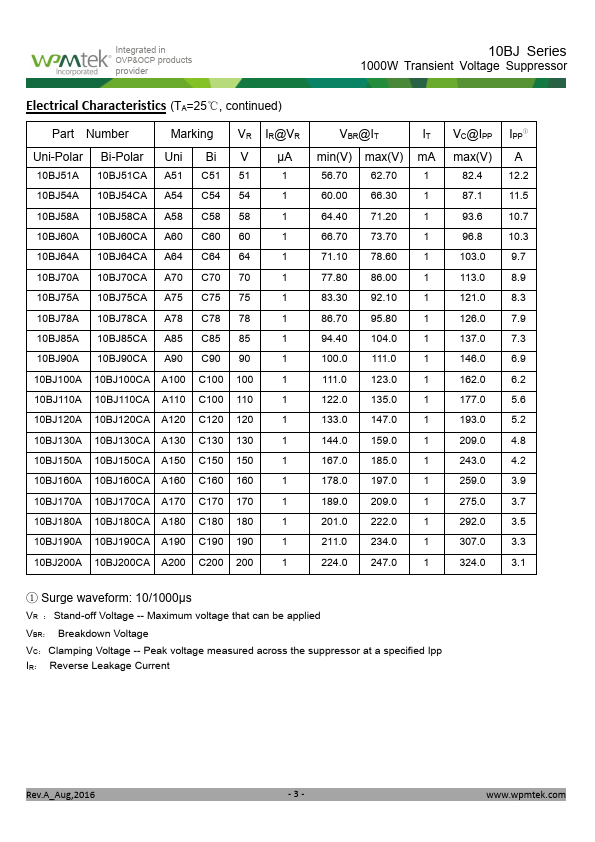

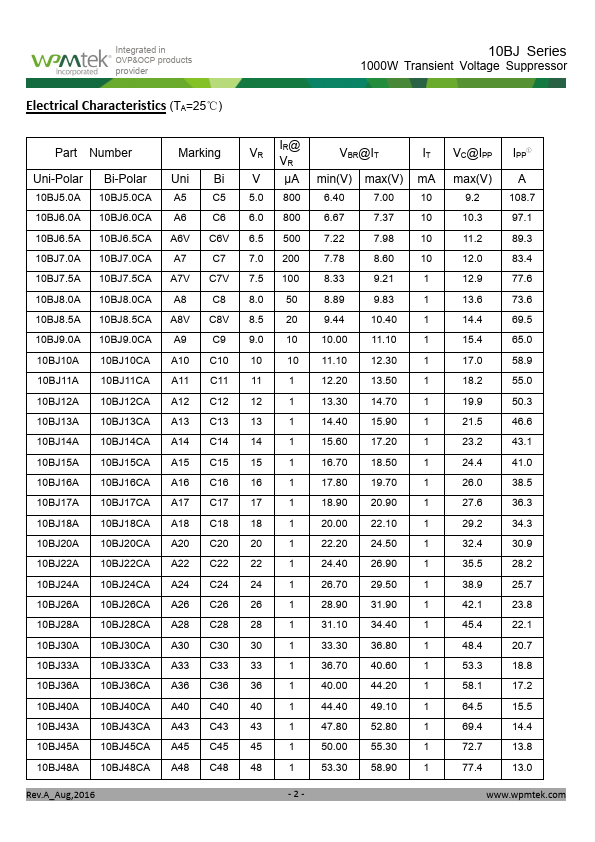

Additional preview pages of the 10BJ26CA datasheet.

Product details

Description

TVS diodes can be used in a wide range of applications which like consumer electronic products, automotive industries, munitions, telecommunications, aerospace industries, and intelligent control systems.

Features

Glass passivated or planar junction.
Excellent clamping capability.
Repetition rate (duty cycle): 0.01%.
Low profile package and low inductance.
1000W Peak Pulse power capability at 10×1000μs waveform.
Fast response time: typically less than 1.0ps from 0V to VBR min.
High temperature soldering: 260℃/10s at terminals.
For surface mounted.
