UF1004CT, UF1000CT-WON - 10A GLASS PASSIVATED DUAL ULTRAFAST RECTIFIER

Name: UF1004CT
SKU: UF1004CT-1253097

WON-TOP

The UF1004CT by WON-TOP is a 10A GLASS PASSIVATED DUAL ULTRAFAST RECTIFIER. Below is the official datasheet preview.

Datasheet Details

Part number	UF1004CT, UF1000CT-WON
Manufacturer	WON-TOP
File Size	42.25 KB
Description	10A GLASS PASSIVATED DUAL ULTRAFAST RECTIFIER
Datasheet	UF1000CT-WON-TOP.pdf
Note	This datasheet PDF includes multiple part numbers: UF1004CT, UF1000CT-WON. Please refer to the document for exact specifications by model.

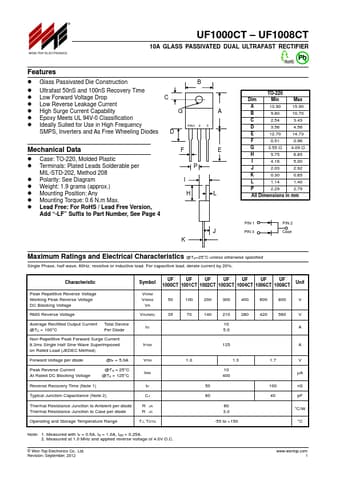

Additional preview pages of the UF1004CT datasheet.

Glass Passivated Die Construction.
Ultrafast 50nS and 100nS Recovery Time.
Low Forward Voltage Drop.
Low Reverse Leakage Current.
High Surge Current Capability.
Epoxy Meets UL 94V-0 Classification.
Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling Diodes C G D B PIN1 2 3 A Mechanical Data.
Case: TO-220, Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: See Diagram.
Wei.
