UF1000 - 10A GLASS PASSIVATED ULTRAFAST RECTIFIER

Download the UF1000 datasheet PDF. This datasheet also covers the UF1000-WON variant, as both devices belong to the same 10a glass passivated ultrafast rectifier family and are provided as variant models within a single manufacturer datasheet.

Features

  • Glass Passivated Die Construction.
  • Ultrafast 50nS and 100nS Recovery Time.
  • Low Forward Voltage Drop.
  • Low Reverse Leakage Current.
  • High Surge Current Capability.
  • Epoxy Meets UL 94V-0 Classification.
  • Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling Diodes C G D B PIN1 3 A Mechanical Data.
  • Case: TO-220A, Molded Plastic.
  • Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
  • Polarity: See Diagram.
  • Weig.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (UF1000-WON-TOP.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number UF1000
Manufacturer WON-TOP
File Size 41.74 KB
Description 10A GLASS PASSIVATED ULTRAFAST RECTIFIER
Datasheet download datasheet UF1000 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
UF1000 (UF1000 - UF1008) ULTRAFAST SWITCHING RECTIFIER Pan Jit International
UF1000F (UF1000F - UF1008F) ULTRAFAST SWITCHING RECTIFIER Pan Jit International
UF100 (UF100 - UF1010) ULTRAFAST SWITCHING RECTIFIER Pan Jit International
UF100 ULTRAFAST SWITCHING RECTIFIER TRSYS
UF1001 (UF1000 - UF1008) ULTRAFAST SWITCHING RECTIFIER Pan Jit International

Other Datasheets by WON-TOP

Part Number Description
UF1000CT 10A GLASS PASSIVATED DUAL ULTRAFAST RECTIFIER
UF1000F 10A GLASS PASSIVATED ULTRAFAST RECTIFIER
UF1000FCT 10A GLASS PASSIVATED DUAL ULTRAFAST RECTIFIER
UF1001 10A GLASS PASSIVATED ULTRAFAST RECTIFIER
UF1001CT 10A GLASS PASSIVATED DUAL ULTRAFAST RECTIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

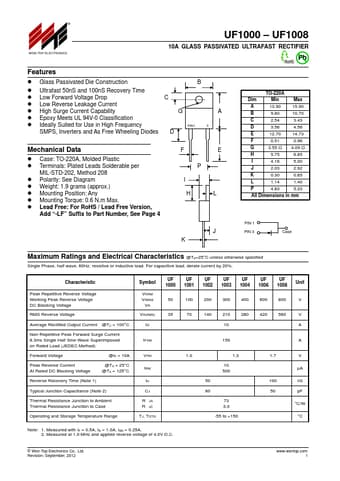

® WON-TOP ELECTRONICS UF1000 – UF1008 10A GLASS PASSIVATED ULTRAFAST RECTIFIER Pb Features  Glass Passivated Die Construction  Ultrafast 50nS and 100nS Recovery Time  Low Forward Voltage Drop  Low Reverse Leakage Current  High Surge Current Capability  Epoxy Meets UL 94V-0 Classification  Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling Diodes C G D B PIN1 3 A Mechanical Data  Case: TO-220A, Molded Plastic  Terminals: Plated Leads Solderable per MIL-STD-202, Method 208  Polarity: See Diagram  Weight: 1.9 grams (approx.)  Mounting Position: Any  Mounting Torque: 0.6 N.m Max.  Lead Free: For RoHS / Lead Free Version, Add “-LF” Suffix to Part Number, See Page 4 FE P I H L J K TO-220A Dim Min Max A 13.90 15.90 B 9.80 10.70 C 2.54 3.43 D 3.
