SK28 - 2.0A SURFACE MOUNT SCHOTTKY BARRIER DIODE

Download the SK28 datasheet PDF. This datasheet also covers the SK22-WON variant, as both devices belong to the same 2.0a surface mount schottky barrier diode family and are provided as variant models within a single manufacturer datasheet.

Features

  • Low Forward Voltage.
  • Epitaxial Construction with Oxide Passivation.
  • Guard Ring for Transient and ESD Protection.
  • Surge Overload Rating to 50A Peak.
  • Low Power Loss A.
  • Fast Switching.
  • Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling Diodes C B F HG E D Mechanical Data.
  • Case: SMB/DO-214AA, Molded Plastic.
  • Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026.
  • Polarity: Cathode Band or Cathode N.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SK22-WON-TOP.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SK28
Manufacturer WON-TOP
File Size 39.15 KB
Description 2.0A SURFACE MOUNT SCHOTTKY BARRIER DIODE
Datasheet download datasheet SK28 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SK28 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER GOOD-ARK Electronics
SK28 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Chendahang Electronics
SK28 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER KD
SK28 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER JQC
SK28-G 2.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER SANGDEST MICROELECTRONICS

Other Datasheets by WON-TOP

Part Number Description
SK2150 2.0A HIGH VOLTAGE SURFACE MOUNT SCHOTTKY BARRIER DIODE
SK22 2.0A SURFACE MOUNT SCHOTTKY BARRIER DIODE
SK2200 2.0A HIGH VOLTAGE SURFACE MOUNT SCHOTTKY BARRIER DIODE
SK23 2.0A SURFACE MOUNT SCHOTTKY BARRIER DIODE
SK24 2.0A SURFACE MOUNT SCHOTTKY BARRIER DIODE

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

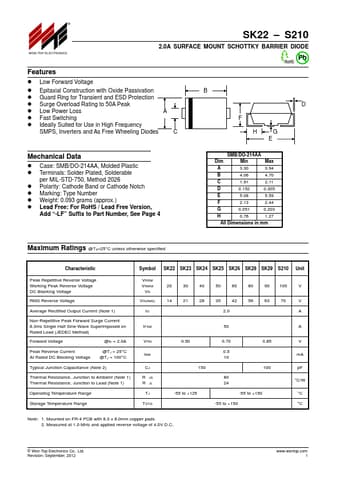

® WON-TOP ELECTRONICS SK22 – S210 2.0A SURFACE MOUNT SCHOTTKY BARRIER DIODE Pb Features  Low Forward Voltage  Epitaxial Construction with Oxide Passivation  Guard Ring for Transient and ESD Protection  Surge Overload Rating to 50A Peak  Low Power Loss A  Fast Switching  Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling Diodes C B F HG E D Mechanical Data  Case: SMB/DO-214AA, Molded Plastic  Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026  Polarity: Cathode Band or Cathode Notch  Marking: Type Number  Weight: 0.093 grams (approx.)  Lead Free: For RoHS / Lead Free Version, Add “-LF” Suffix to Part Number, See Page 4 SMB/DO-214AA Dim Min Max A 3.30 3.94 B 4.06 4.70 C 1.91 2.11 D 0.152 0.305 E 5.08 5.59 F 2.
