SB850DC, SB820DC-WON - 8.0A SURFACE MOUNT DUAL SCHOTTKY BARRIER RECTIFIER

Name: SB850DC
SKU: SB850DC-1272103

WON-TOP

The SB850DC by WON-TOP is a 8.0A SURFACE MOUNT DUAL SCHOTTKY BARRIER RECTIFIER. Below is the official datasheet preview.

Datasheet Details

Part number	SB850DC, SB820DC-WON
Manufacturer	WON-TOP
File Size	42.53 KB
Description	8.0A SURFACE MOUNT DUAL SCHOTTKY BARRIER RECTIFIER
Datasheet	SB820DC-WON-TOP.pdf
Note	This datasheet PDF includes multiple part numbers: SB850DC, SB820DC-WON. Please refer to the document for exact specifications by model.

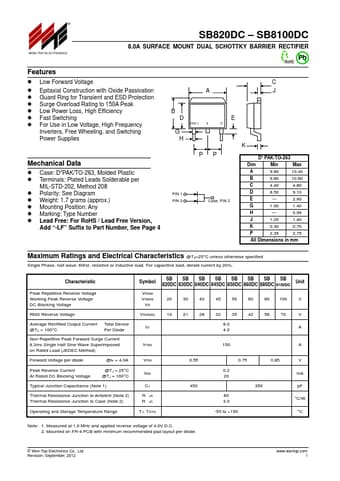

Additional preview pages of the SB850DC datasheet.

Low Forward Voltage.
Epitaxial Construction with Oxide Passivation.
Guard Ring for Transient and ESD Protection.
Surge Overload Rating to 150A Peak.
Low Power Loss, High Efficiency.
Fast Switching.
For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Switching Power Supplies Mechanical Data.
Case: D2PAK/TO-263, Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: See Diagram.
Weight: 1.7.
