SB4045FCT - 40A DUAL SCHOTTKY BARRIER RECTIFIER

Download the SB4045FCT datasheet PDF. This datasheet also covers the SB4020FCT-WON variant, as both devices belong to the same 40a dual schottky barrier rectifier family and are provided as variant models within a single manufacturer datasheet.

Features

  • Schottky Barrier Chip.
  • Guard Ring for Transient Protection.
  • Low Forward Voltage Drop.
  • Low Power Loss, High Efficiency.
  • High Surge Current Capability.
  • Epoxy Meets UL 94V-0 Classification.
  • Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling Diodes C G D B PIN1 2 3 A Mechanical Data.
  • Case: ITO-220, Full Molded Plastic.
  • Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
  • Polarity: See Diagram.
  • Weight:.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SB4020FCT-WON-TOP.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SB4045FCT
Manufacturer WON-TOP
File Size 42.43 KB
Description 40A DUAL SCHOTTKY BARRIER RECTIFIER
Datasheet download datasheet SB4045FCT Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SB4045PT (SB4020PT - SB4060PT) Isolation Schottky Barrier Rectifiers Pan Jit International
SB4045PT-AU SCHOTTKY BARRIER RECTIFIERS Pan Jit International
SB404 (SB4xx) Silicon Bridge Rectifiers Allied Electronic
SB4040PT (SB4020PT - SB4060PT) Isolation Schottky Barrier Rectifiers Pan Jit International
SB404L 4 Amp Silicon Bridge Rectifiers Diotec Electronics

Other Datasheets by WON-TOP

Part Number Description
SB4045CT 40A DUAL SCHOTTKY BARRIER RECTIFIER
SB4045DC 40A SURFACE MOUNT DUAL SCHOTTKY BARRIER RECTIFIER
SB4040CT 40A DUAL SCHOTTKY BARRIER RECTIFIER
SB4040DC 40A SURFACE MOUNT DUAL SCHOTTKY BARRIER RECTIFIER
SB4040FCT 40A DUAL SCHOTTKY BARRIER RECTIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

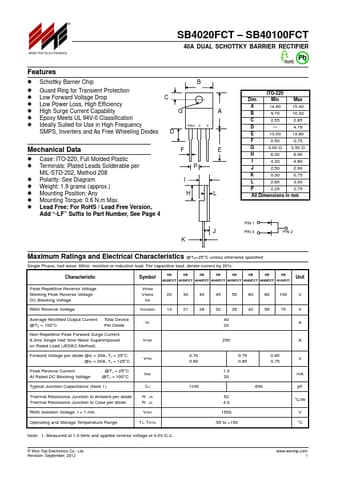

® WON-TOP ELECTRONICS SB4020FCT – SB40100FCT 40A DUAL SCHOTTKY BARRIER RECTIFIER Pb Features  Schottky Barrier Chip  Guard Ring for Transient Protection  Low Forward Voltage Drop  Low Power Loss, High Efficiency  High Surge Current Capability  Epoxy Meets UL 94V-0 Classification  Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling Diodes C G D B PIN1 2 3 A Mechanical Data  Case: ITO-220, Full Molded Plastic  Terminals: Plated Leads Solderable per MIL-STD-202, Method 208  Polarity: See Diagram  Weight: 1.9 grams (approx.)  Mounting Position: Any  Mounting Torque: 0.6 N.m Max.  Lead Free: For RoHS / Lead Free Version, Add “-LF” Suffix to Part Number, See Page 4 F P I H E L J K ITO-220 Dim Min Max A 14.60 15.40 B 9.70 10.30 C 2.55 2.85 D — 4.
