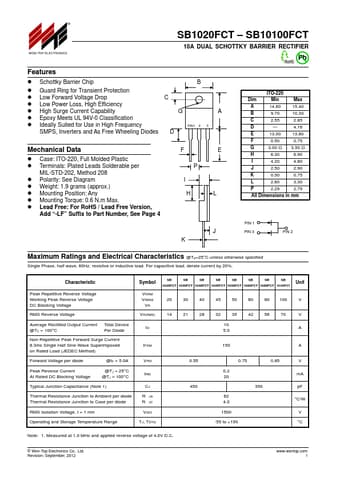

SB1050FCT, SB1020FCT-WON - 10A DUAL SCHOTTKY BARRIER RECTIFIER

WON-TOP

Datasheet Details

Part number	SB1050FCT, SB1020FCT-WON
Manufacturer	WON-TOP
File Size	42.26 KB
Description	10A DUAL SCHOTTKY BARRIER RECTIFIER
Datasheet	SB1020FCT-WON-TOP.pdf
Note	This datasheet PDF includes multiple part numbers: SB1050FCT, SB1020FCT-WON. Please refer to the document for exact specifications by model.

Schottky Barrier Chip.
Guard Ring for Transient Protection.
Low Forward Voltage Drop.
Low Power Loss, High Efficiency.
High Surge Current Capability.
Epoxy Meets UL 94V-0 Classification.
Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling Diodes C G D B PIN1 2 3 A Mechanical Data.
Case: ITO-220, Full Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: See Diagram.
Weight:.
