SB1020D, SB1020D-WON 10A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

SB1020D Description

® WON-TOP ELECTRONICS SB1020D * SB10100D 10A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Pb .

SB1020D Features

* Schottky Barrier Chip
* Guard Ring for Transient Protection
* Low Forward Voltage Drop
* Low Power Loss, High Efficiency
* High Surge Current Capability
* Epoxy Meet UL 94V-0 Classification
* For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Switching

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SB1020D, SB1020D-WON. Please refer to the document for exact specifications by model.

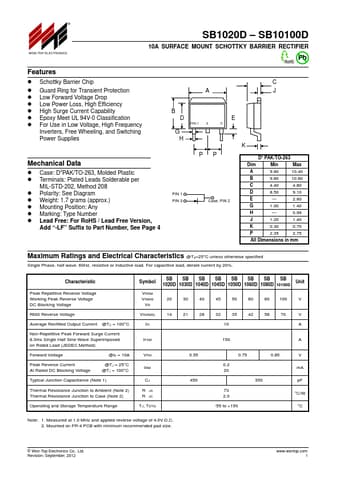

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SB1020D, SB1020D-WON
Manufacturer
WON-TOP
File Size
41.94 KB
Datasheet
SB1020D-WON-TOP.pdf
Description
10A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SB1020D, SB1020D-WON.
Please refer to the document for exact specifications by model.
