S2K - 2.0A SURFACE MOUNT GLASS PASSIVATED STANDARD DIODE

Download the S2K datasheet PDF. This datasheet also covers the S2K-WON variant, as both devices belong to the same 2.0a surface mount glass passivated standard diode family and are provided as variant models within a single manufacturer datasheet.

Features

  • Glass Passivated Die Construction.
  • Ideally Suited for Automatic Assembly.
  • Low Forward Voltage Drop.
  • Surge Overload Rating to 60A Peak.
  • Low Power Loss.
  • Built-in Strain Relief.
  • Plastic Case Material has UL Flammability Classification Rating 94V-0 A C B F HG E D Mechanical Data.
  • Case: SMB/DO-214AA, Molded Plastic.
  • Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026.
  • Polarity: Cathode Band or Cathode Notch.
  • Marking: Type Numb.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (S2K-WON-TOP.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number S2K
Manufacturer WON-TOP
File Size 34.77 KB
Description 2.0A SURFACE MOUNT GLASS PASSIVATED STANDARD DIODE
Datasheet download datasheet S2K Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
S2K SURFACE MOUNT RECTIFIERS EIC
S2K 2.0A SURFACE MOUNT GLASS PASSIVATED RECTIFIER Sangdest Microelectronics
S2K 1.5A Surface Mount Rectifier TAITRON
S2K 2.0A Surface Mount Glass Passivated Rectifier Bruckewell
S2K 1.5A SURFACE MOUNT GLASS PASSIVATED RECTIFIER Diodes

Other Datasheets by WON-TOP

Part Number Description
S2KA 2.0A SURFACE MOUNT GLASS PASSIVATED STANDARD DIODE

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

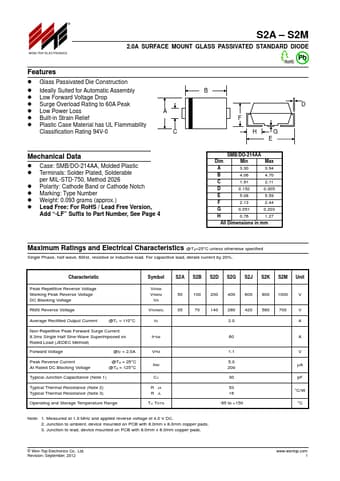

® WON-TOP ELECTRONICS S2A – S2M 2.0A SURFACE MOUNT GLASS PASSIVATED STANDARD DIODE Pb Features  Glass Passivated Die Construction  Ideally Suited for Automatic Assembly  Low Forward Voltage Drop  Surge Overload Rating to 60A Peak  Low Power Loss  Built-in Strain Relief  Plastic Case Material has UL Flammability Classification Rating 94V-0 A C B F HG E D Mechanical Data  Case: SMB/DO-214AA, Molded Plastic  Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026  Polarity: Cathode Band or Cathode Notch  Marking: Type Number  Weight: 0.093 grams (approx.)  Lead Free: For RoHS / Lead Free Version, Add “-LF” Suffix to Part Number, See Page 4 SMB/DO-214AA Dim Min Max A 3.30 3.94 B 4.06 4.70 C 1.91 2.11 D 0.152 0.305 E 5.08 5.59 F 2.13 2.44 G 0.051 0.
