S2B - 2.0A SURFACE MOUNT GLASS PASSIVATED STANDARD DIODE

Product Overview

WON-TOP

Part number	S2B
Manufacturer	WON-TOP
File Size	34.76 KB
Description	2.0A SURFACE MOUNT GLASS PASSIVATED STANDARD DIODE
Datasheet	S2B Datasheet
Note	This datasheet PDF includes multiple part numbers: S2B, S2B-WON. Please refer to the document for exact specifications by model.

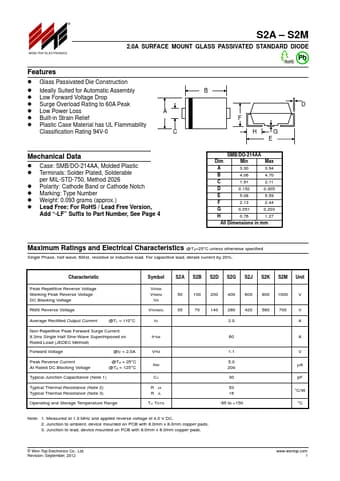

Additional preview pages of the S2B datasheet.

Glass Passivated Die Construction.
Ideally Suited for Automatic Assembly.
Low Forward Voltage Drop.
Surge Overload Rating to 60A Peak.
Low Power Loss.
Built-in Strain Relief.
Plastic Case Material has UL Flammability Classification Rating 94V-0 A C B F HG E D Mechanical Data.
Case: SMB/DO-214AA, Molded Plastic.
Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026.
Polarity: Cathode Band or Cathode Notch.
Marking: Type Numb.
