S10K, S10A-WON - 10A SURFACE MOUNT GLASS PASSIVATED STANDARD DIODE

WON-TOP

📥 Download Datasheet

S10K Datasheet Preview — This datasheet PDF includes multiple part numbers: S10K, S10A-WON. Please refer to the document for exact specifications by model.

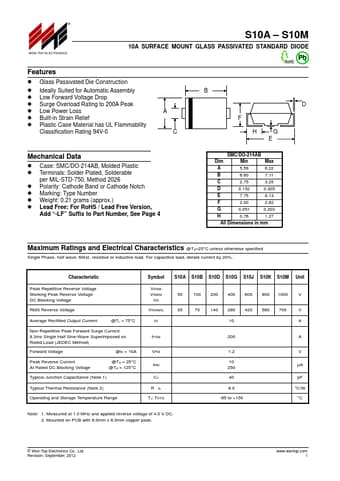

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	S10K, S10A-WON
Manufacturer	WON-TOP
File Size	38.28 KB
Description	10A SURFACE MOUNT GLASS PASSIVATED STANDARD DIODE
Datasheet	S10A-WON-TOP.pdf
Note	This datasheet PDF includes multiple part numbers: S10K, S10A-WON. Please refer to the document for exact specifications by model.

S10K Product details

Features

Glass Passivated Die Construction.
Ideally Suited for Automatic Assembly.
Low Forward Voltage Drop.
Surge Overload Rating to 200A Peak.
Low Power Loss.
Built-in Strain Relief.
Plastic Case Material has UL Flammability Classification Rating 94V-0 A C B F HG E D Mechanical Data.
Case: SMC/DO-214AB, Molded Plastic.
Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026.
Polarity: Cathode Band or Cathode Notch.
Marking: Type Num.
