PF3501 - PRESS-FIT DIODE

Download the PF3501 datasheet PDF. This datasheet also covers the PF3500-WON variant, as both devices belong to the same press-fit diode family and are provided as variant models within a single manufacturer datasheet.

Features

  • Diffused Junction.
  • Low Leakage.
  • Low Cost.
  • High Surge Current Capability.
  • Typical IR less than 5.0µA PF3500.
  • PF3506 35A 1/2” PRESS-FIT DIODE Pb A Anode + Mechanical Data.
  • Case: DO-21, Copper Case and Components Hermetically Sealed.
  • Terminals: Contact Areas Readily Solderable.
  • Polarity: Cathode to Case (Reverse Units Are F Available Upon Request and Are Designated By A “R” Suffix, i. e. PF3502R or PF3504R).
  • Polarity: Red Color Equals Sta.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (PF3500-WON-TOP.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number PF3501
Manufacturer WON-TOP
File Size 27.89 KB
Description PRESS-FIT DIODE
Datasheet download datasheet PF3501 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
PF35 Stepper Motor Nippon Pulse
PF35T Stepper Motor Nippon Pulse
PF3000 PMIC NXP
PF3001 Power management integrated circuit NXP
PF308N Diode Nihon Inter Electronics

Other Datasheets by WON-TOP

Part Number Description
PF3500 PRESS-FIT DIODE
PF3502 PRESS-FIT DIODE
PF3503 PRESS-FIT DIODE
PF3504 PRESS-FIT DIODE
PF3505 PRESS-FIT DIODE

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

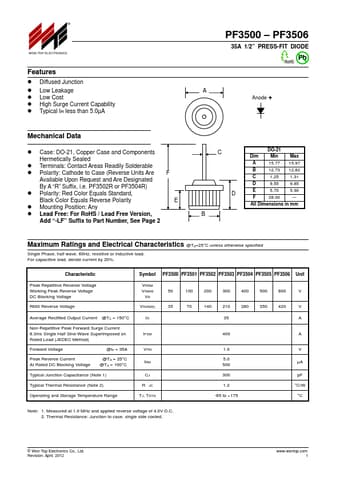

® WON-TOP ELECTRONICS Features  Diffused Junction  Low Leakage  Low Cost  High Surge Current Capability  Typical IR less than 5.0µA PF3500 – PF3506 35A 1/2” PRESS-FIT DIODE Pb A Anode + Mechanical Data  Case: DO-21, Copper Case and Components Hermetically Sealed  Terminals: Contact Areas Readily Solderable  Polarity: Cathode to Case (Reverse Units Are F Available Upon Request and Are Designated By A “R” Suffix, i.e. PF3502R or PF3504R)  Polarity: Red Color Equals Standard, Black Color Equals Reverse Polarity  Mounting Position: Any  Lead Free: For RoHS / Lead Free Version, E Add “-LF” Suffix to Part Number, See Page 2 C D B DO-21 Dim Min Max A 15.77 15.97 B 12.73 12.82 C 1.25 1.31 D 9.55 9.85 E 5.70 5.90 F 28.
