MMBD4448HADW - SURFACE MOUNT FAST SWITCHING DIODE

Download the MMBD4448HADW datasheet PDF. This datasheet also covers the MMBD4448HADW-WON variant, as both devices belong to the same surface mount fast switching diode family and are provided as variant models within a single manufacturer datasheet.

Features

  • Quad Diode Com. Anode, Cathode and Series.
  • Fast Switching A L.
  • Surface Mount Package Ideally Suited for Automatic Insertion.
  • For General Purpose Switching.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MMBD4448HADW-WON-TOP.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MMBD4448HADW
Manufacturer WON-TOP
File Size 86.12 KB
Description SURFACE MOUNT FAST SWITCHING DIODE
Datasheet download datasheet MMBD4448HADW Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MMBD4448HADW Surface Mount Switching Multi-Chip Diode Array WEITRON
MMBD4448HADW Surface Mount Switching Diode Array SeCoS
MMBD4448HADW Switching Diodes MCC
MMBD4448HADW Surface Mount Fast Switching Diodes LGE
MMBD4448HADW SWITCHING DIODE JCET

Other Datasheets by WON-TOP

Part Number Description
MMBD4448HAQW SURFACE MOUNT FAST SWITCHING DIODE ARRAY
MMBD4448HCDW SURFACE MOUNT FAST SWITCHING DIODE
MMBD4448HCQW SURFACE MOUNT FAST SWITCHING DIODE ARRAY
MMBD4448HSDW SURFACE MOUNT FAST SWITCHING DIODE
MMBD4448HT SURFACE MOUNT FAST SWITCHING DIODE

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

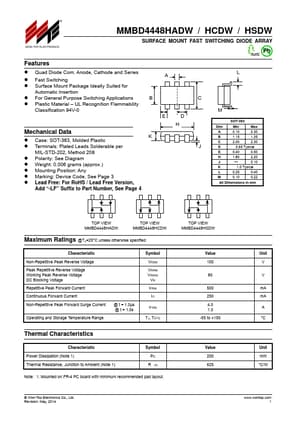

® WON-TOP ELECTRONICS MMBD4448HADW / HCDW / HSDW SURFACE MOUNT FAST SWITCHING DIODE ARRAY Pb Features  Quad Diode Com. Anode, Cathode and Series  Fast Switching A L  Surface Mount Package Ideally Suited for Automatic Insertion  For General Purpose Switching Applications B C  Plastic Material – UL Recognition Flammability Classification 94V-0 M ED H SOT-363 Dim Min Max Mechanical Data  Case: SOT-363, Molded Plastic  Terminals: Plated Leads Solderable per K A 0.10 0.30 B 1.15 1.35 C 2.00 2.30 J D 0.65 Typical MIL-STD-202, Method 208  Polarity: See Diagram  Weight: 0.006 grams (approx.)  Mounting Position: Any  Marking: Device Code, See Page 3 E 0.40 0.50 H 1.80 2.20 J — 0.10 K 1.0 Typical L 0.25 0.40 M 0.10 0.
