KBPC1010P - 10A SINGLE PHASE BRIDGE RECTIFIER

Product Overview

WON-TOP

Part number	KBPC1010P
Manufacturer	WON-TOP
File Size	43.22 KB
Description	10A SINGLE PHASE BRIDGE RECTIFIER
Datasheet	KBPC1010P Datasheet
Note	This datasheet PDF includes multiple part numbers: KBPC1010P, KBPC1000P-WON. Please refer to the document for exact specifications by model.

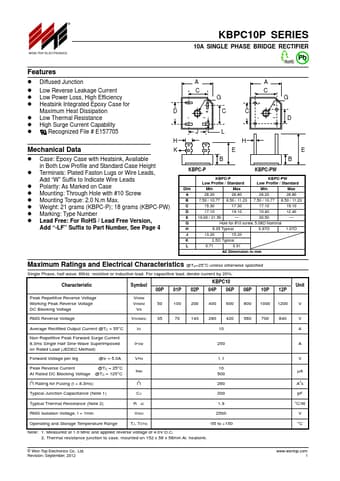

Additional preview pages of the KBPC1010P datasheet.

Diffused Junction.
Low Reverse Leakage Current.
Low Power Loss, High Efficiency.
Heatsink Integrated Epoxy Case for Maximum Heat Dissipation.
Low Thermal Resistance.
High Surge Current Capability.
Recognized File # E157705 D H Mechanical Data K.
Case: Epoxy Case with Heatsink, Available in Both Low Profile and Standard Case Height.
Terminals: Plated Faston Lugs or Wire Leads, Add “W” Suffix to Indicate Wire Leads.
Polarity: As Marked on C.
