GLZ22A, GLZ2.0A-WON - 500mW SURFACE MOUNT ZENER DIODE

Name: GLZ22A
SKU: GLZ22A-1287914

WON-TOP

The GLZ22A by WON-TOP is a 500mW SURFACE MOUNT ZENER DIODE. Below is the official datasheet preview.

Datasheet Details

Part number	GLZ22A, GLZ2.0A-WON
Manufacturer	WON-TOP
File Size	52.70 KB
Description	500mW SURFACE MOUNT ZENER DIODE
Datasheet	GLZ2.0A-WON-TOP.pdf
Note	This datasheet PDF includes multiple part numbers: GLZ22A, GLZ2.0A-WON. Please refer to the document for exact specifications by model.

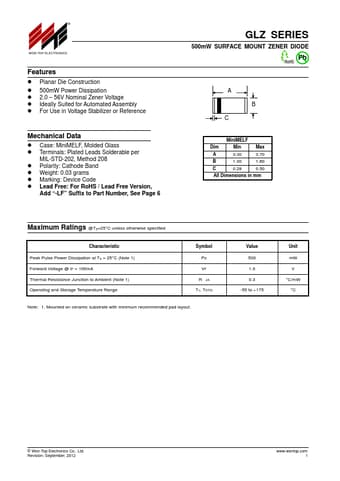

Additional preview pages of the GLZ22A datasheet.

Planar Die Construction.
500mW Power Dissipation.
2.0.
56V Nominal Zener Voltage.
Ideally Suited for Automated Assembly.
For Use in Voltage Stabilizer or Reference Mechanical Data.
Case: MiniMELF, Molded Glass.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: Cathode Band.
Weight: 0.03 grams.
Marking: Device Code.
Lead Free: For RoHS / Lead Free Version, Add “-LF” Suffix to Part Number, See Page 6 GLZ SERI.
