GBPC1500PS - 15A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER

Download the GBPC1500PS datasheet PDF. This datasheet also covers the GBPC1500PS-WON variant, as both devices belong to the same 15a glass passivated single phase bridge rectifier family and are provided as variant models within a single manufacturer datasheet.

Features

  • Glass Passivated Die Construction.
  • Low Reverse Leakage Current.
  • Low Power Loss, High Efficiency.
  • Heatsink Integrated Epoxy Case for Maximum Heat Dissipation.
  • Low Thermal Resistance.
  • High Surge Current Capability.
  • Recognized File # E157705 C Mechanical Data.
  • Case: Epoxy Case with Heatsink Internally Mounted in the Bridge Encapsulation.
  • Terminals: Plated Faston Lugs.
  • Polarity: As Marked on Case.
  • Mounting: Through Hole with #10 Screw.
  • M.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (GBPC1500PS-WON-TOP.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number GBPC1500PS
Manufacturer WON-TOP
File Size 41.40 KB
Description 15A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER
Datasheet download datasheet GBPC1500PS Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
GBPC1500 Bridge Rectifier Formosa MS
GBPC1500 15A GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER Won-Top Electronics
GBPC15005 Glass Passivated Single-Phase Bridge Rectifier Vishay
GBPC15005 GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER General Semiconductor
GBPC15005 Bridge Rectifiers ON Semiconductor

Other Datasheets by WON-TOP

Part Number Description
GBPC1500S 15A GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
GBPC1501PS 15A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER
GBPC1501S 15A GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
GBPC1502PS 15A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER
GBPC1502S 15A GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

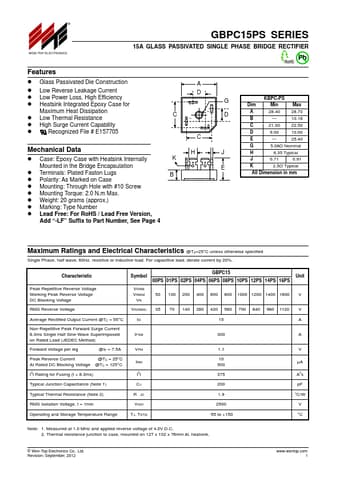

® WON-TOP ELECTRONICS GBPC15PS SERIES 15A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER Pb Features  Glass Passivated Die Construction  Low Reverse Leakage Current  Low Power Loss, High Efficiency  Heatsink Integrated Epoxy Case for Maximum Heat Dissipation  Low Thermal Resistance  High Surge Current Capability  Recognized File # E157705 C Mechanical Data  Case: Epoxy Case with Heatsink Internally Mounted in the Bridge Encapsulation  Terminals: Plated Faston Lugs  Polarity: As Marked on Case  Mounting: Through Hole with #10 Screw  Mounting Torque: 2.0 N.m Max.  Weight: 20 grams (approx.)  Marking: Type Number  Lead Free: For RoHS / Lead Free Version, Add “-LF” Suffix to Part Number, See Page 4 K B A D - ~ ~ + C H G D J E KBPC-PS Dim Min Max A 28.40 28.70 B — 10.
