ES1E - 1.0A SURFACE MOUNT GLASS PASSIVATED SUPERFAST DIODE

Product Overview

WON-TOP

Part number	ES1E
Manufacturer	WON-TOP
File Size	39.18 KB
Description	1.0A SURFACE MOUNT GLASS PASSIVATED SUPERFAST DIODE
Datasheet	ES1E Datasheet
Note	This datasheet PDF includes multiple part numbers: ES1E, ES1A-WON. Please refer to the document for exact specifications by model.

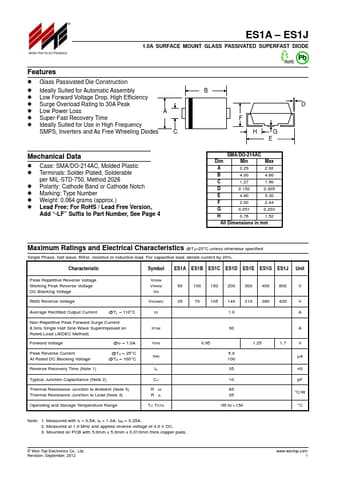

Additional preview pages of the ES1E datasheet.

Glass Passivated Die Construction.
Ideally Suited for Automatic Assembly.
Low Forward Voltage Drop, High Efficiency.
Surge Overload Rating to 30A Peak.
Low Power Loss A.
Super-Fast Recovery Time.
Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling Diodes C B F H G E D Mechanical Data.
Case: SMA/DO-214AC, Molded Plastic.
Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026.
Polarity: Cathode B.
