ER801 - 8.0A GLASS PASSIVATED SUPERFAST RECTIFIER

Product Overview

WON-TOP

Part number	ER801
Manufacturer	WON-TOP
File Size	41.94 KB
Description	8.0A GLASS PASSIVATED SUPERFAST RECTIFIER
Datasheet	ER801 Datasheet
Note	This datasheet PDF includes multiple part numbers: ER801, ER800-WON. Please refer to the document for exact specifications by model.

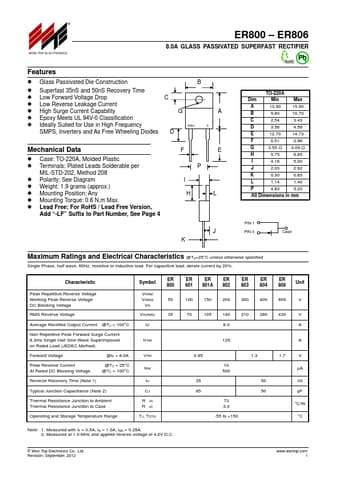

Additional preview pages of the ER801 datasheet.

Glass Passivated Die Construction.
Superfast 35nS and 50nS Recovery Time.
Low Forward Voltage Drop.
Low Reverse Leakage Current.
High Surge Current Capability.
Epoxy Meets UL 94V-0 Classification.
Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling Diodes C G D B PIN1 3 A Mechanical Data.
Case: TO-220A, Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: See Diagram.
Weigh.
