BZX84B51 - 350mW SURFACE MOUNT ZENER DIODE

Download the BZX84B51 datasheet PDF. This datasheet also covers the BZX84B2V4-WON variant, as both devices belong to the same 350mw surface mount zener diode family and are provided as variant models within a single manufacturer datasheet.

Features

  • Planar Die Construction.
  • 350mW Power Dissipation.
  • 2.4V.
  • 51V Nominal Zener Voltage.
  • 2% Standard Vz Tolerance.
  • Designed for Surface Mount.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BZX84B2V4-WON-TOP.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number BZX84B51
Manufacturer WON-TOP
File Size 47.28 KB
Description 350mW SURFACE MOUNT ZENER DIODE
Datasheet download datasheet BZX84B51 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BZX84B51 Zener Diode MCC
BZX84B51 Surface Mount Zener Diodes GOOD-ARK
BZX84B51 Small Signal Zener Diodes Vishay
BZX84B51 SILICON PLANAR ZENER DIODES SEMTECH
BZX84B51-G Small Signal Zener Diodes Vishay

Other Datasheets by WON-TOP

Part Number Description
BZX84B5V1 350mW SURFACE MOUNT ZENER DIODE
BZX84B5V6 350mW SURFACE MOUNT ZENER DIODE
BZX84B10 350mW SURFACE MOUNT ZENER DIODE
BZX84B11 350mW SURFACE MOUNT ZENER DIODE
BZX84B12 350mW SURFACE MOUNT ZENER DIODE

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

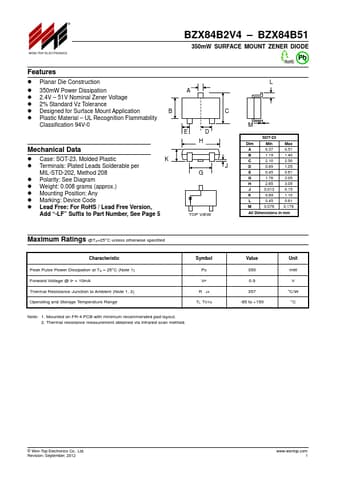

® WON-TOP ELECTRONICS Features  Planar Die Construction  350mW Power Dissipation  2.4V – 51V Nominal Zener Voltage  2% Standard Vz Tolerance  Designed for Surface Mount Application  Plastic Material – UL Recognition Flammability Classification 94V-0 B Mechanical Data  Case: SOT-23, Molded Plastic K  Terminals: Plated Leads Solderable per MIL-STD-202, Method 208  Polarity: See Diagram  Weight: 0.008 grams (approx.)  Mounting Position: Any  Marking: Device Code  Lead Free: For RoHS / Lead Free Version, Add “-LF” Suffix to Part Number, See Page 5 BZX84B2V4 – BZX84B51 350mW SURFACE MOUNT ZENER DIODE Pb L A C ED H J G TOP VIEW M SOT-23 Dim Min Max A 0.37 0.51 B 1.19 1.40 C 2.10 2.50 D 0.89 1.05 E 0.45 0.61 G 1.78 2.05 H 2.65 3.05 J 0.013 0.
