BAS70ST, BAS70T-WON SURFACE MOUNT SCHOTTKY BARRIER DIODE

BAS70ST Description

® WON-TOP ELECTRONICS BAS70T / AT / CT / ST SURFACE MOUNT SCHOTTKY BARRIER DIODE Pb .

BAS70ST Features

* Single and Dual Diode
* Low Forward Voltage, Fast Switching Speed
* PN Junction Guard Ring for Transient and ESD Protection

BAS70ST Applications

* Plastic Material
* UL Recognition Flammability Classification 94V-0 B Mechanical Data
* Case: SOT-523, Molded Plastic
* Terminals: Plated Leads Solderable per MIL-STD-202, Method 208
* Polarity: See Diagrams Below
* Weight: 0.002 grams (approx. )
* Marking: Device

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BAS70ST, BAS70T-WON. Please refer to the document for exact specifications by model.

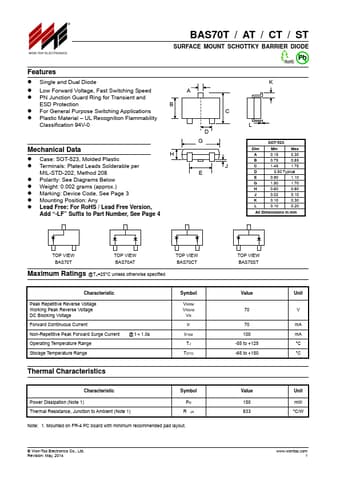

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BAS70ST, BAS70T-WON
Manufacturer
WON-TOP
File Size
85.09 KB
Datasheet
BAS70T-WON-TOP.pdf
Description
SURFACE MOUNT SCHOTTKY BARRIER DIODE
Note
This datasheet PDF includes multiple part numbers: BAS70ST, BAS70T-WON.
Please refer to the document for exact specifications by model.
