BAS40ST, BAS40T-WON, SURFACE MOUNT SCHOTTKY BARRIER DIODE

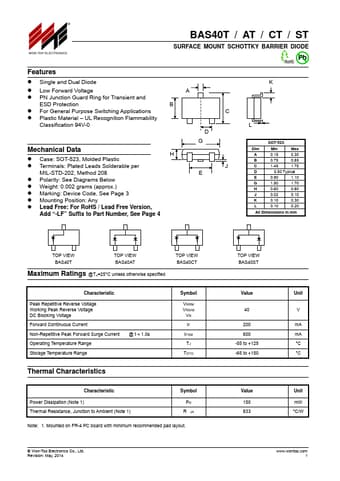

® WON-TOP ELECTRONICS BAS40T / AT / CT / ST SURFACE MOUNT SCHOTTKY BARRIER DIODE Pb

Features

* Single and Dual Diode
* Low Forward Voltage
* PN Junction Guard Ring for Transient and ESD Protection

Applications

* Plastic Material
* UL Recognition Flammability Classification 94V-0 B Mechanical Data
* Case: SOT-523, Molded Plastic
* Terminals: Plated Leads Solderable per MIL-STD-202, Method 208
* Polarity: See Diagrams Below
* Weight: 0.002 grams (approx.
)
* Marking: Device
