AR50J - 50A AUTOMOTIVE BUTTON DIODE

Download the AR50J datasheet PDF. This datasheet also covers the AR50A-WON variant, as both devices belong to the same 50a automotive button diode family and are provided as variant models within a single manufacturer datasheet.

Features

  • Diffused Junction.
  • Low Leakage.
  • Low Cost.
  • High Surge Current Capability.
  • Low Cost Construction Utilizing Void-Free Molded Plastic Technique AR/S50A.
  • AR/S50J 50A.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (AR50A-WON-TOP.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number AR50J
Manufacturer WON-TOP
File Size 31.41 KB
Description 50A AUTOMOTIVE BUTTON DIODE
Datasheet download datasheet AR50J Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AR50J HIGH CURRENT AUTOMOBILE RECTIFIER HY
AR50J 50A AUTOMOTIVE BUTTON DIODE SENSITRON SEMICONDUCTOR
AR50J High Current Button Rectifiers Taiwan Semiconductor
AR5000 AUTOMOTIVE RECTIFIER DIODES EIC discrete Semiconductors
AR50005 HIGH CURRENT PLASTIC SILICON RECTIFIERS Yangzhou yangjie electronic

Other Datasheets by WON-TOP

Part Number Description
AR50JL 50A LEADED AUTOMOTIVE BUTTON DIODE
AR50A 50A AUTOMOTIVE BUTTON DIODE
AR50AL 50A LEADED AUTOMOTIVE BUTTON DIODE
AR50B 50A AUTOMOTIVE BUTTON DIODE
AR50BL 50A LEADED AUTOMOTIVE BUTTON DIODE

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

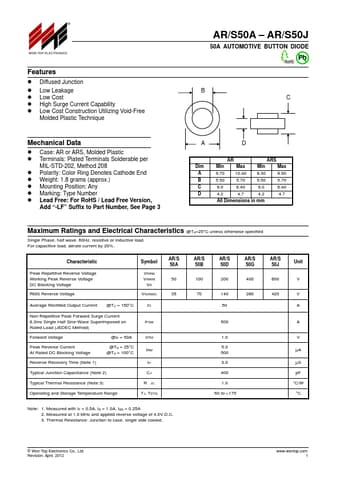

® WON-TOP ELECTRONICS Features  Diffused Junction  Low Leakage  Low Cost  High Surge Current Capability  Low Cost Construction Utilizing Void-Free Molded Plastic Technique AR/S50A – AR/S50J 50A AUTOMOTIVE BUTTON DIODE Pb B C Mechanical Data  Case: AR or ARS, Molded Plastic  Terminals: Plated Terminals Solderable per MIL-STD-202, Method 208  Polarity: Color Ring Denotes Cathode End  Weight: 1.8 grams (approx.)  Mounting Position: Any  Marking: Type Number  Lead Free: For RoHS / Lead Free Version, Add “-LF” Suffix to Part Number, See Page 3 AD AR ARS Dim Min Max Min Max A 9.70 10.40 8.30 8.90 B 5.50 5.70 5.50 5.70 C 6.0 6.40 6.0 6.40 D 4.2 4.7 4.2 4.
