5.0SMCJ30C, 5.0SMCJ11-WON - 5000W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

WON-TOP

📥 Download Datasheet

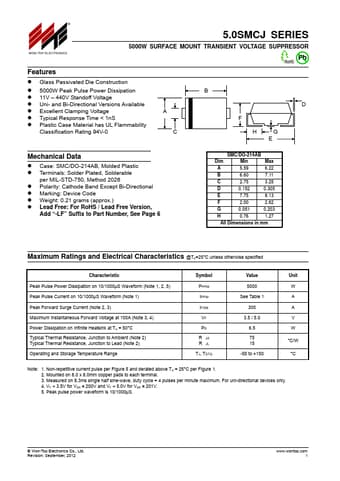

5.0SMCJ30C Datasheet Preview — This datasheet PDF includes multiple part numbers: 5.0SMCJ30C, 5.0SMCJ11-WON. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: 5.0SMCJ30C, 5.0SMCJ11-WON
Manufacturer: WON-TOP
File Size: 96.46 KB
Datasheet: 5.0SMCJ11-WON-TOP.pdf
Description: 5000W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
Note: This datasheet PDF includes multiple part numbers: 5.0SMCJ30C, 5.0SMCJ11-WON.
Please refer to the document for exact specifications by model.

5.0SMCJ30C Product details

Features

Glass Passivated Die Construction.
5000W Peak Pulse Power Dissipation.
11V.
440V Standoff Voltage.
Uni- and Bi-Directional Versions Available.
Excellent Clamping Voltage.
Typical Response Time < 1nS.
Plastic Case Material has UL Flammability Classification Rating 94V-0 A C B F H G E D Mechanical Data.
Case: SMC/DO-214AB, Molded Plastic.
Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026.
Polarity: Cathode Band Excep.
