20KP204A - 20000W TRANSIENT VOLTAGE SUPPRESSOR

Download the 20KP204A datasheet PDF. This datasheet also covers the 20KP20A-WON variant, as both devices belong to the same 20000w transient voltage suppressor family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • Glass Passivated Die Construction.
  • 20000W Peak Pulse Power Dissipation.
  • 20V.
  • 300V Standoff Voltage.
  • Uni- and Bi-Directional Versions Available.
  • Excellent Clamping Voltage.
  • Typical Response Time < 1nS.
  • Plastic Case Material has UL Flammability Classification Rating 94V-0 Mechanical Data.
  • Case: P-600, Molded Plastic.
  • Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
  • Polarity: Cathode Band Except Bi-Directional.
  • Weight:.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (20KP20A-WON-TOP.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 20KP204A
Manufacturer WON-TOP
File Size 89.98 KB
Description 20000W TRANSIENT VOLTAGE SUPPRESSOR
Datasheet download datasheet 20KP204A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
20KP204A GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR MDE Semiconductor
20KP204A Axial Lead Transient Voltage Suppressors UN Semiconductor
20KP204A TRANSIENT VOLTAGE SUPPRESSORS EIC
20KP204A 20000W TVS Diodes Liown
20KP204CA GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR MDE Semiconductor

Other Datasheets by WON-TOP

Part Number Description
20KP204CA 20000W TRANSIENT VOLTAGE SUPPRESSOR
20KP20A 20000W TRANSIENT VOLTAGE SUPPRESSOR
20KP20CA 20000W TRANSIENT VOLTAGE SUPPRESSOR
20KP216A 20000W TRANSIENT VOLTAGE SUPPRESSOR
20KP216CA 20000W TRANSIENT VOLTAGE SUPPRESSOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

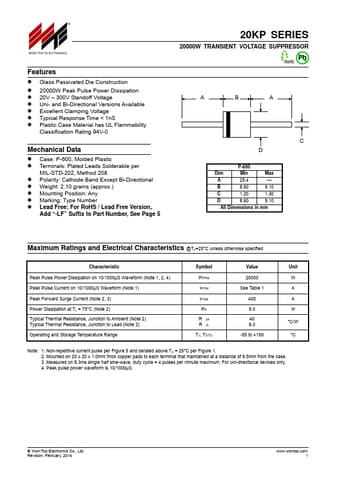

® WON-TOP ELECTRONICS Features  Glass Passivated Die Construction  20000W Peak Pulse Power Dissipation  20V – 300V Standoff Voltage  Uni- and Bi-Directional Versions Available  Excellent Clamping Voltage  Typical Response Time < 1nS  Plastic Case Material has UL Flammability Classification Rating 94V-0 Mechanical Data  Case: P-600, Molded Plastic  Terminals: Plated Leads Solderable per MIL-STD-202, Method 208  Polarity: Cathode Band Except Bi-Directional  Weight: 2.10 grams (approx.)  Mounting Position: Any  Marking: Type Number  Lead Free: For RoHS / Lead Free Version, Add “-LF” Suffix to Part Number, See Page 5 20KP SERIES 20000W TRANSIENT VOLTAGE SUPPRESSOR Pb ABA D P-600 Dim Min Max A 25.4 — B 8.60 9.10 C 1.20 1.30 D 8.60 9.
