1N5408 - 3.0A STANDARD DIODE

This page provides the datasheet information for the 1N5408, a member of the 1N5400-WON 3.0A STANDARD DIODE family.

Datasheet Summary

Features

  • Diffused Junction.
  • Low Forward Voltage Drop.
  • High Current Capability.
  • High Reliability.
  • High Surge Current Capability 1N5400.
  • 1N5408 3.0A.

📥 Download Datasheet

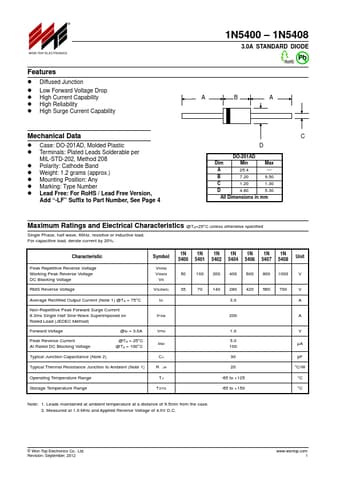

Datasheet preview – 1N5408

Datasheet Details

Part number 1N5408
Manufacturer WON-TOP
File Size 39.52 KB
Description 3.0A STANDARD DIODE
Datasheet download datasheet 1N5408 Datasheet
Additional preview pages of the 1N5408 datasheet.

📁 Similar Datasheet

  • 1N5408 - GLASS PASSIVATED SILICON RECTIFIER (SMC Diode)
  • 1N5408 - Power Diode (Multicomp)
  • 1N5408 - Silicon Rectifiers (Taiwan Semiconductor)
  • 1N5408 - General Purpose Rectifiers (Fairchild Semiconductor)
  • 1N5408 - Axial-Lead Standard Recovery Rectifier (ON Semiconductor)
  • 1N5408 - 3.0A RECTIFIER (Diodes)
  • 1N5408 - General Purpose Plastic Rectifier (Vishay)
  • 1N5408 - Axial Lead Standard Recovery Silicon Rectifiers (NTE)
  • 1N5408 - SILICON RECTIFIER DIODES (EIC)
  • 1N5408 - AXIAL LEADED RECTIFIER DIODES (Sunmate)
Other Datasheets by WON-TOP

Full PDF Text Transcription

Click to expand full text
® WON-TOP ELECTRONICS Features  Diffused Junction  Low Forward Voltage Drop  High Current Capability  High Reliability  High Surge Current Capability 1N5400 – 1N5408 3.0A STANDARD DIODE Pb AB A Mechanical Data  Case: DO-201AD, Molded Plastic  Terminals: Plated Leads Solderable per MIL-STD-202, Method 208  Polarity: Cathode Band  Weight: 1.2 grams (approx.)  Mounting Position: Any  Marking: Type Number  Lead Free: For RoHS / Lead Free Version, Add “-LF” Suffix to Part Number, See Page 4 D DO-201AD Dim Min Max A 25.4 — B 7.20 9.50 C 1.20 1.30 D 4.80 5.30 All Dimensions in mm C Maximum Ratings and Electrical Characteristics @TA=25°C unless otherwise specified Single Phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
