1H4 - 1.0A ULTRAFAST DIODE

Download the 1H4 datasheet PDF. This datasheet also covers the 1H4-WON variant, as both devices belong to the same 1.0a ultrafast diode family and are provided as variant models within a single manufacturer datasheet.

Features

  • Diffused Junction.
  • Low Forward Voltage Drop.
  • High Surge Current Capability.
  • High Reliability.
  • Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling Diodes Mechanical Data.
  • Case: R-1, Molded Plastic.
  • Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
  • Polarity: Cathode Band.
  • Weight: 0.181 grams (approx. ).
  • Mounting Position: Any.
  • Marking: Type Number.
  • Lead Free: For RoHS / Lead Free Version, Add “-LF”.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1H4-WON-TOP.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 1H4
Manufacturer WON-TOP
File Size 35.92 KB
Description 1.0A ULTRAFAST DIODE
Datasheet download datasheet 1H4 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
1H4 1.0 AMP HIGH EFFICIENCY RECTIFIERS Formosa MS
1H4 HIGH EFFICIENCY RECTIFIER Rectron Semiconductor
1H4 TECHINCAL SPECIFICATIONS OF MINIATURE HIGH EFFICIENCY RECTIFIER Dc Components
1H4 HIGH EFFICIENCY RECTIFIERS GALAXY ELECTRICAL
1H4 High Efficiency Rectifiers MSV SEMI

Other Datasheets by WON-TOP

Part Number Description

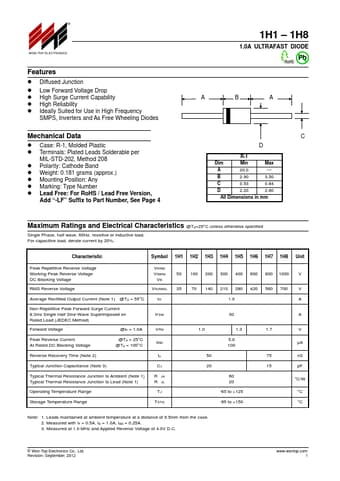

Full PDF Text Transcription

Click to expand full text
® WON-TOP ELECTRONICS Features  Diffused Junction  Low Forward Voltage Drop  High Surge Current Capability  High Reliability  Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling Diodes Mechanical Data  Case: R-1, Molded Plastic  Terminals: Plated Leads Solderable per MIL-STD-202, Method 208  Polarity: Cathode Band  Weight: 0.181 grams (approx.)  Mounting Position: Any  Marking: Type Number  Lead Free: For RoHS / Lead Free Version, Add “-LF” Suffix to Part Number, See Page 4 1H1 – 1H8 1.0A ULTRAFAST DIODE Pb AB A D R-1 Dim Min Max A 20.0 — B 2.90 3.50 C 0.53 0.64 D 2.20 2.60 All Dimensions in mm C Maximum Ratings and Electrical Characteristics @TA=25°C unless otherwise specified Single Phase, half wave, 60Hz, resistive or inductive load.
