DX6210 - Isolated Offline LED Controller

Product Overview

WINSEMI

📥 Download Datasheet

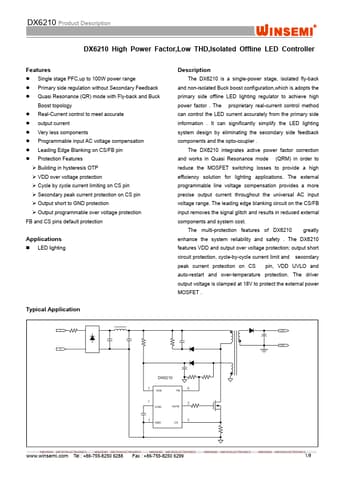

DX6210 Isolated Offline LED Controller by WINSEMI - Datasheet Preview — Datasheet preview – DX6210

Datasheet Details

Part number	DX6210
Manufacturer	WINSEMI
File Size	497.35 KB
Description	Isolated Offline LED Controller
Datasheet	DX6210 Datasheet
Additional preview pages of the DX6210 datasheet.

Product details

Description

DX6210 High Power Factor,Low THD,Isolated Offline LED Controller

Features

Single stage PFC,up to 100W power range.
Primary side regulation without Secondary Feedback.
Quasi Resonance (QR) mode with Fly-back and Buck Boost topology.
Real-Current control to meet accurate.
output current.
Very less components.
Programmable input AC voltage compensation.
Leading Edge Blanking on CS/FB pin.
Protection Features.
Building in hysteresis OTP.
VDD over voltage protection.
Cycle by cycle current limiting on CS pin.
